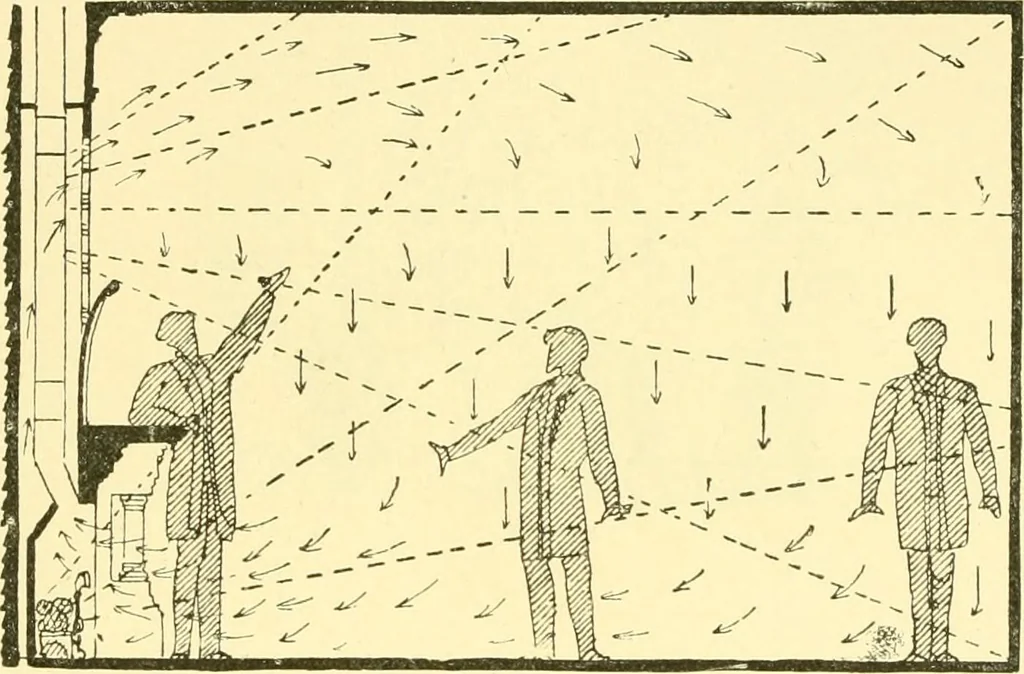

Fig. 213. Distributor as Open Radator. THE OPEN FIREPLACE. 159 the top of the triangle. The slip-joint for the removal of the radiator isformed at this point. In the latter design the perforated panel containingthe large arch and the central screen must be unscrewed before the radi-ator can be… … F g 2 4 Dagram showing the Direction of Heat Rays and Air Currents. order to show the manner in which the rays of heat from the fire and theradiator above distribute themselves throughout the room. The head of aperson standing near the mantel is protected by the screen from the hot-test ra3rs of…
