Operation and adjustments of the automatic three wire telephone (1915)
Decker, Benjamin Harrison · leaf 62

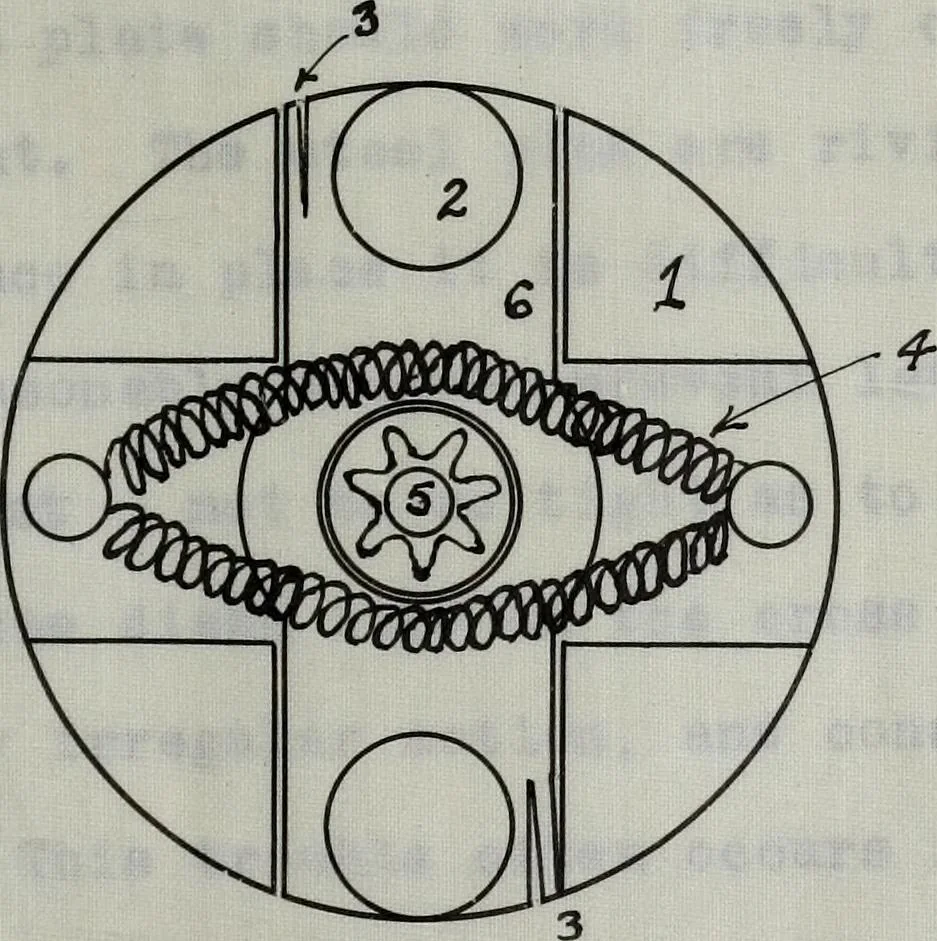

governor vshaft is geared directly to the main shaft by means ofthe gear wheel, so when the dial rotates on its backward movementthe cam pawl operates the gear whed causing the governor torotate. Due to the centrifugal force the half disks are thrownoutward, and limits the speed of the mechanism.… … Fig. 1^ Governor Assembly.:L-Gov&rnor Disk. ^.-Gov<z,rnor Sprtn^^ Z.- Ljtik -Kiv<^t~, -5.- Shaft. 3 - Gov. s<&^fne.iiTs. (o,- D/^k Link.
