The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 39

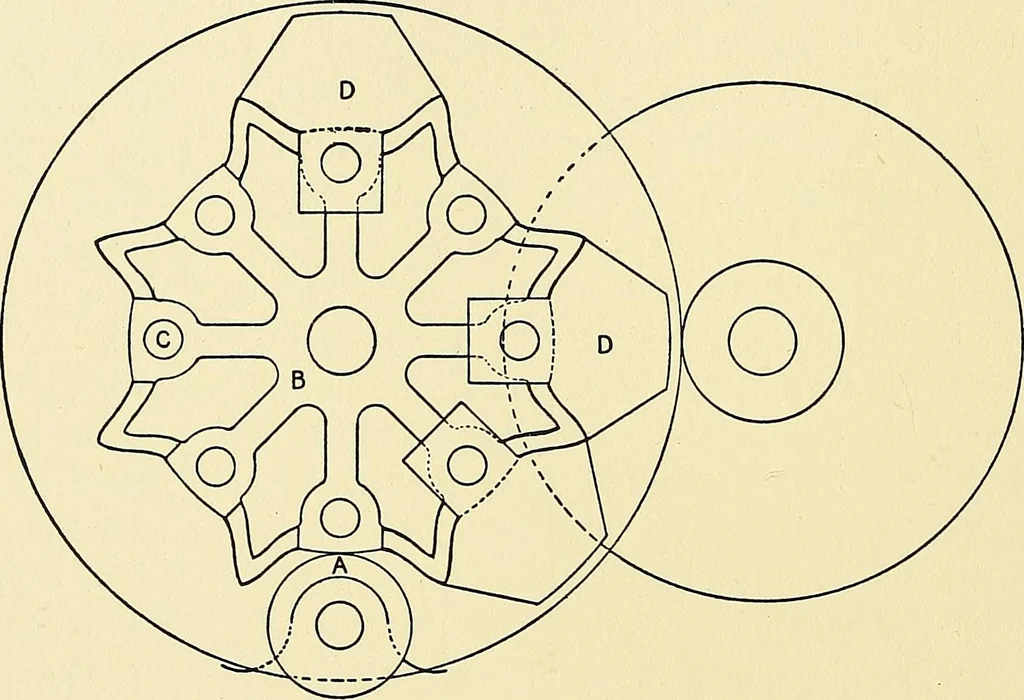

ks upon each.No. I heald shaft is to be lifted at picks 2, 3, and 5; then into theslots of 2, 3, and 5 the sinker plates are inserted, while all the othersare left bare. Heald shaft 4, on the contrary, is to be depressed atpicks 2, 3, 5, then sinkers are to be put upon all the other slots, viz.I,… … Fig. 268.—Jamiesons Negative TappetA, Bowl of treadle. B, Spur wheel, c, Bolt holes. D, Sinker plates. motion is generally accomplished by means of simple springs placedabove the heald shafts, though any other of the over motions may beemployed. It is found that the bolts upon this form of tappet…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
