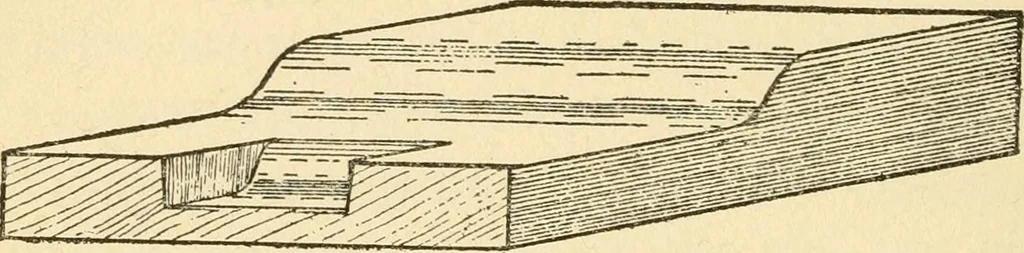

An illustration from Pattern making and foundry practice; a plain statement of the methods of wood pattern making, as practiced in modern pattern shops, with complete instructions for sweep work and notes on foundry practice, together with numerous drawings taken from actual patterns .., 1905, leaf 99
TJ^ 53 of the casting, the parting is made without anytrouble. As an example of a pattern of thiskind the aisle end for a car seat has beenselected. This pattern was arranged in such amanner as to be divided in the middle, so thatthe upper portion is cast separate from the legand used for the wall… … 7V^ S-f end was laid out full size, taking dimensionson a straight-edge and carrying them over
