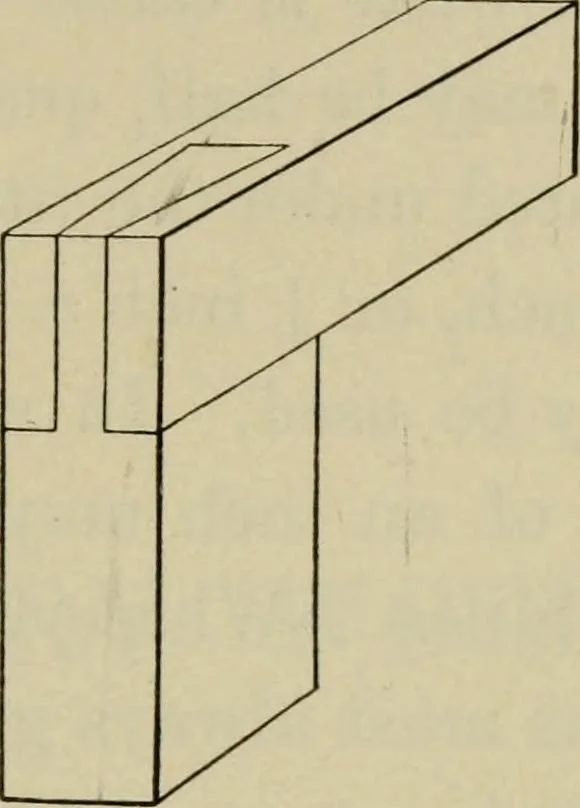

Fig. 61. The Triangles used in Mechan-ical Drawing MISCELLANEOUS TOOLS AND METHODS OF WORK 47 a free-hand sketch of a single dovetail joint, and h themechanical drawing complete. All dimensions must be given, and as far as possiblethey should be so placed as not to interfere with the … ol^l ^ ^ L- -^ ■ K I ^ -4- -h K- 5 — H ^^ 14- 1.//. -f- Fig. 62. Drawings of a Single Dovetail Joint clearness of the drawing. Neat, small arrowheads andplain, clear figures add to the general appearance, justas does careful lettering in titles and all printed words. 48 ELEMENTARY WOODWORKING A…
