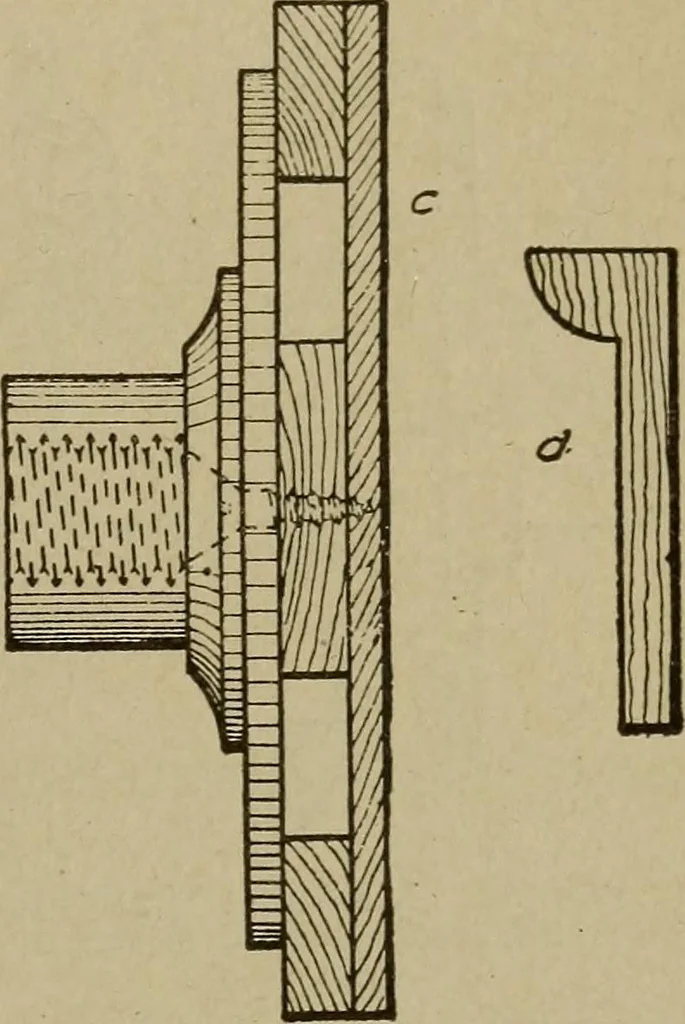

must be so broken and so distributed as to give the greatest possible,strength to the rim. In the present case, our pattern is so small that it is only neces-sary to use a thin board J inch in thickness for each half of the web.After sawing to 6§ inches in diameter—\ inch for turning—a block\ inch… … Fig. 164. Stock Mounted onFaceplate hub, and six annular segments li inches wide and \ inch in thickness are glued around on the outer surface of each to form the rim and groove, as shown at a and b, Fig. 163. Care must be taken to place the segments so that the grain of the web will be crossed by…
