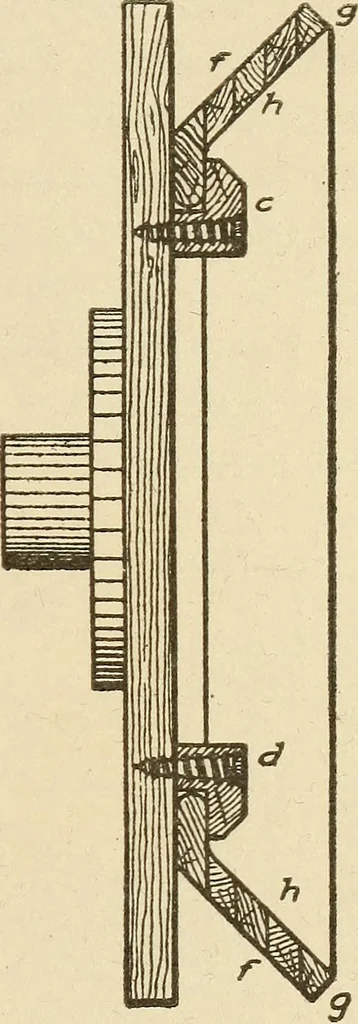

Fig. 261. Large Bevel and Miter Gears Conr structed of 8uilt-Up Stock and Turned on Faceplate Fig. 262. Section of MiterGear, Shown Screwed toFaceplate for Turning section of hub, arm, rim, and tooth. Marking the thickness ofsegments on this layout will show the diameter dimensions, whichcan be…
