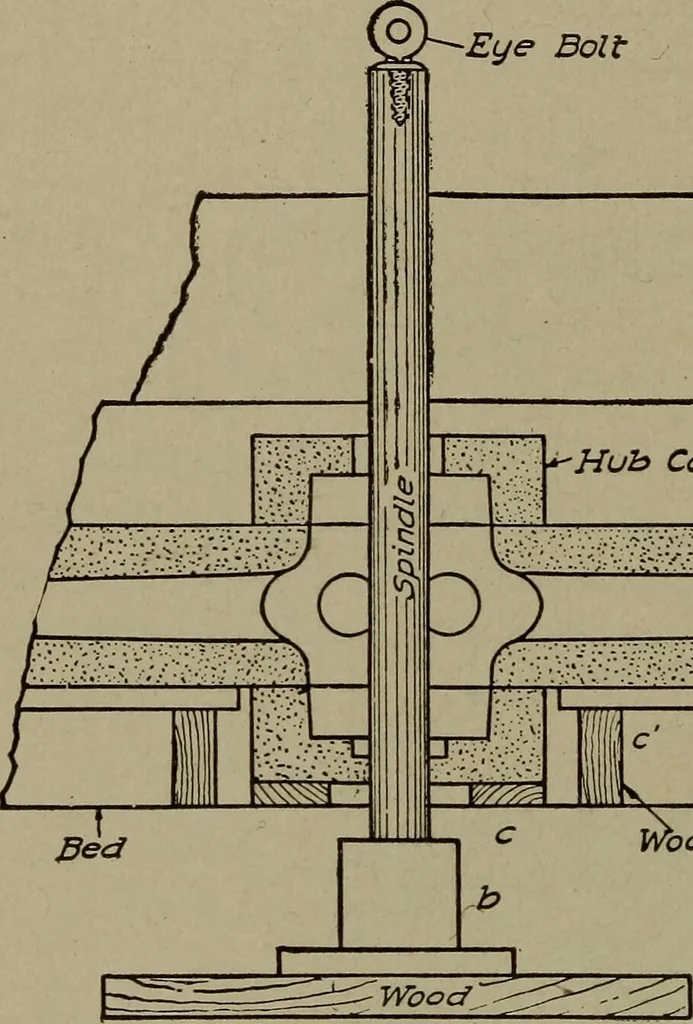

PATTERN MAKING iron pulley-rim patterns, one of these can be used, striking down tothe top of the 3-inch print c if the edge of the rim pattern is too high.Flange Core. The length of the core box for the inside flange,Fig. 189, will be made to allow twelve half cores. Multiply the insidediameter of… … ~-Hub Core /■Rrm Core ood-
