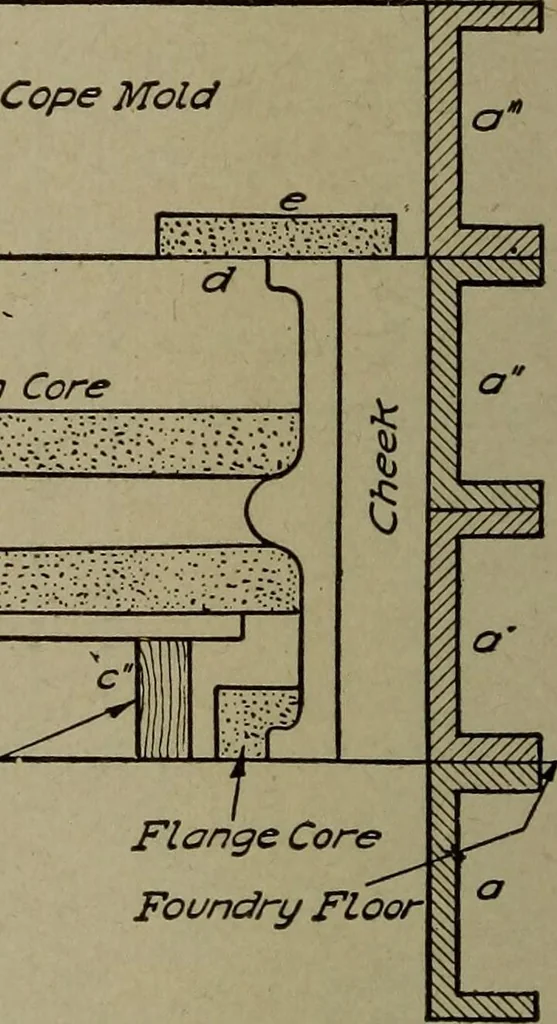

~-Hub Core /■Rrm Core ood- … Flange CoreFoundry Floor Fig. 191. Section of Cored-Arm Pulley Mold core box should be about | inch, and the other dimensions are givenin Fig. 189. Two patterns for the flange will be made, one to be nailed inplace in the core box, and one to be used to mold the upper insideflange. Strike. The…
