Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 89

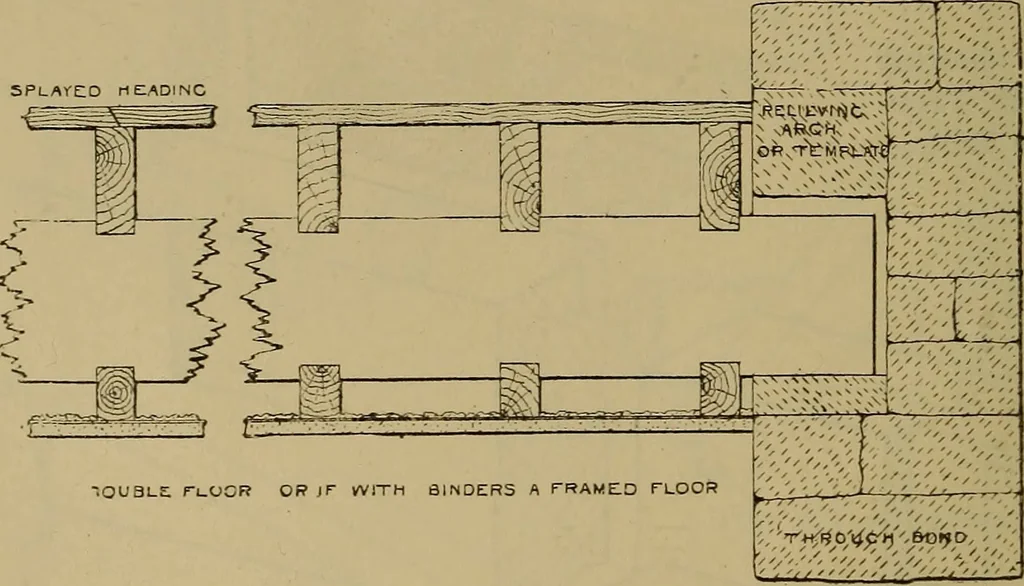

Fig. 327.—Section through Binder showing Bridging Joists Cogged, and Alternative Methods of Connection with Ceiling Joists. it. Fig. 321 is a section through the trim-mer, hearth, coach head brick arch, etc.,shown in plan at Fig. 320. s (Fig. 321) isa feathered-edge piece of board (a… … tQUBi-E ri_OCR Off JF WITH 8INDERS A FRAME.O FLOOR Fig. 326.—Section through Joists, showing Side of Binder supported by Wall. Trimming Round Openings. In projections where fireplaces and flues(usually known as chimney breasts) occurin walls it is necessary to trim round them,so that the nearest…
Carpentry · Joinery
