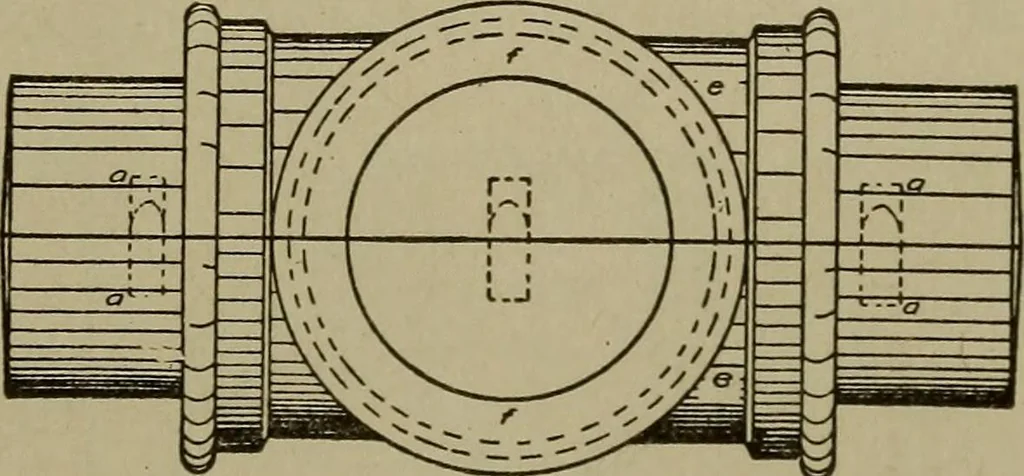

ction shown in Fig. 201is a good illustration. A sec-tional view of the casting,threaded and having a pipescrewed into the right-handend, is shown in Fig, 202. The completed patternfor this casting is illustrated in Fig. 203, with its core prints a, a, and a, and must be parted,as shown in Fig.… … Fig. 204. Plan View of Completed Patternfor Tee 120 PATTERN MAKING End Fastening. Some device should always be used at the endsof stock glued in this manner to assist in making a firm joint. Themetal corrugated fastener is best suited for most requirements. In TT UK vyQoa screws
