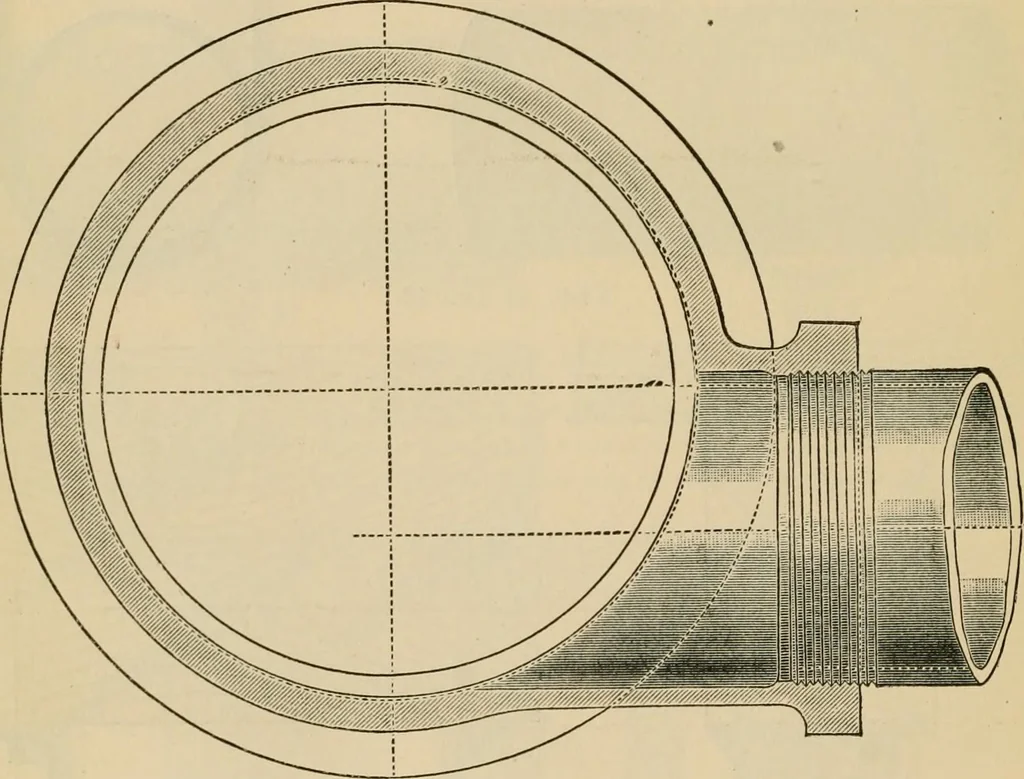

the wedges so that frequent adjust-ment becomes necessary. This form might be used in some places with satisfaction, butwe should not recommend it in preference to the ones described above. Fig. 11 shows another kind in which no provision is made for adjustment vertically.When a line of pipe is run… … Fig. 16. Figs. 12 and 13 show a different form of clip from those previously described.This is simply a bar of round iron bent around to fit the pipe and with threads cut onthe ends. The ends of this clip pass through holes in the plate S, and are providedwith nuts which enable one to make…
