Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 15

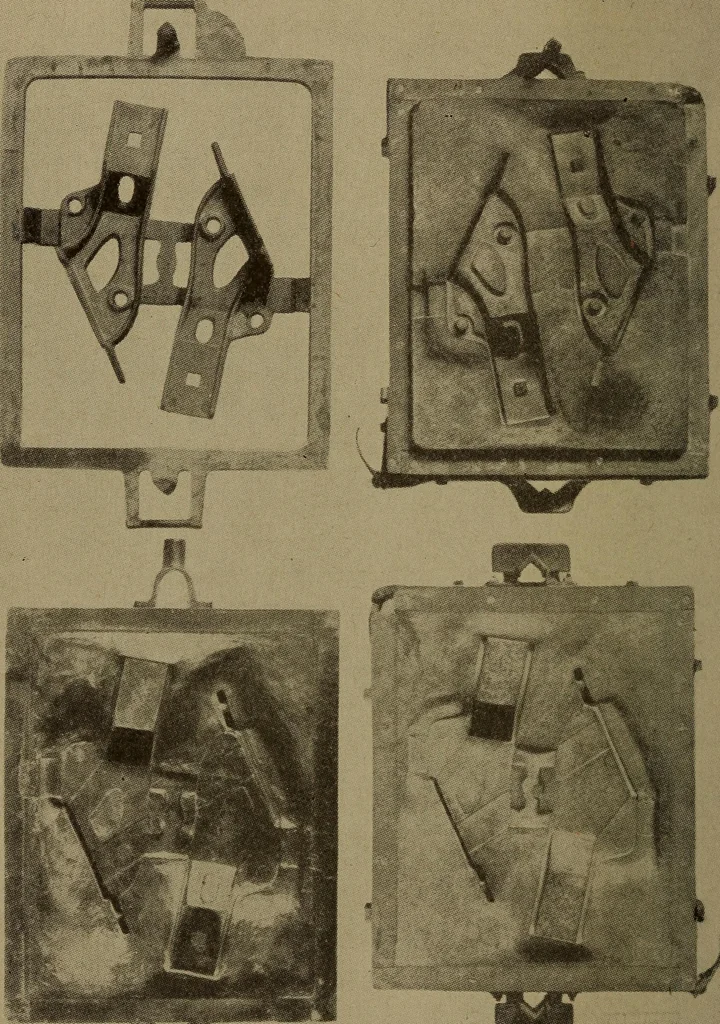

80 Stripping-plate hand-rammed molding machine 182 Hand-molding conditions 182 Molding machine 185 Stripping plate 185 CONTENTS PAGE Stripping-plate hand-rammed molding machine (continued) Use of stool 189 Use of match plate 190 Alignment , 191 Use of roll back 191 Green-sand coring 197… … i PATTERNS MOUNTED IN VIBRATOR FRAMEUpper Left—Patterns in Frame; Upper Right—Drag Half of Mold; Lower Left—Hard Sand Match; Lower Right—Cope Half of MoldCourtesy of Tabor Manufacturing Company, Philadelphia, Pennsylvania PATTERN MAKING PART I PRACTICAL REQUIREMENTS Characteristics. - Pattern…
