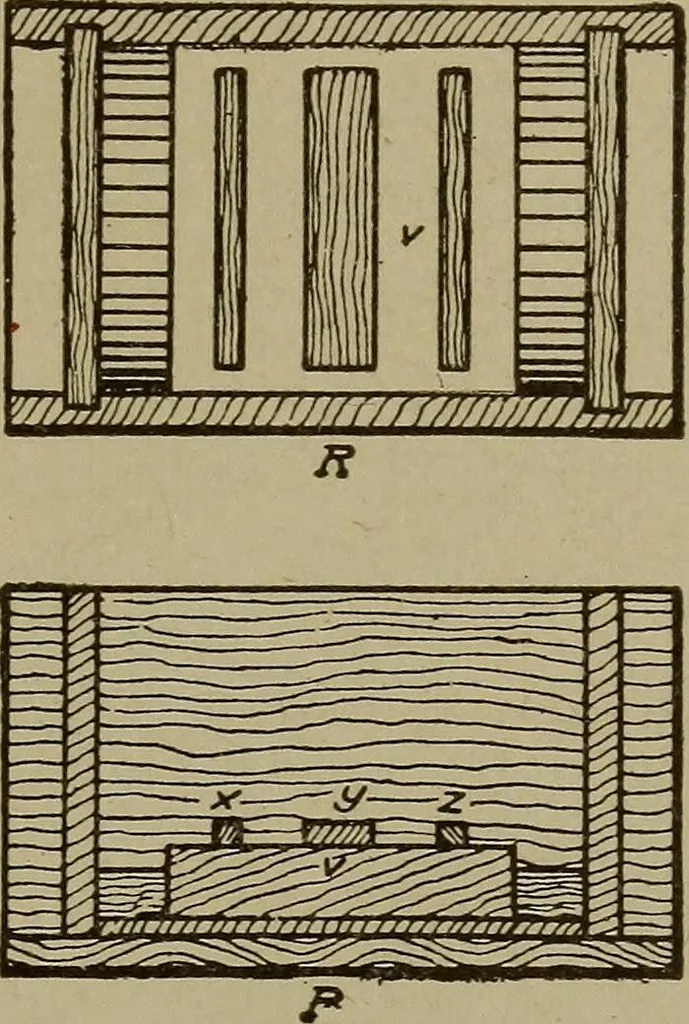

Fig. 248. Two Views of Cylinder Pattern Including Steam Chest bolts of the chest cover, are left loose, being kept in place by long,wires or dowel pins* as shown at cc, so that they can be withdrawn PATTERN MAKING 137 … 77 ; —:g^SS ^ ~ [ ilSllSilij ■M Views of Core Box for Steam Chest separately from the mold after the main part of the pattern has beentaken from the sand. These four strips should be recessed into thecorners of the chest \ inch, as shown by the dotted lines, to preventthem from being rammed out of…
