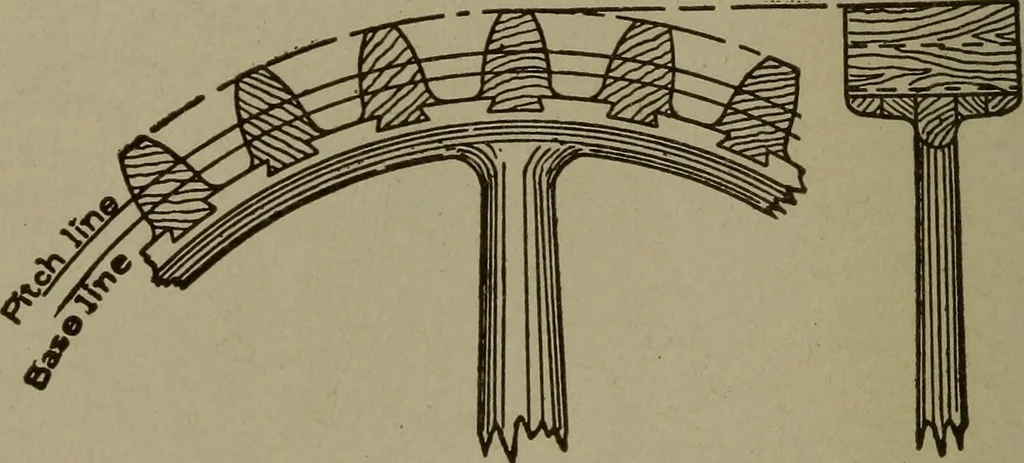

rable backlash can be allowed, and whenthe teeth can be of such size as to be molded easily. For thesereasons, the present-day pattern maker rarely ever gets so far as tocut the teeth of the gear pattern, However, several methods ofconstructing the arms, rims, and teeth sections of these… … Fig. 253. Wood Spur Gear Showing Teeth Dovetailed to Rim we think it would be out of place here to enter into a discussion ofthe relative merits of the single-curve, double-curve, or otherform of tooth. The single-curve or involute tooth, however, hasthe great advantage of being the only form of…
