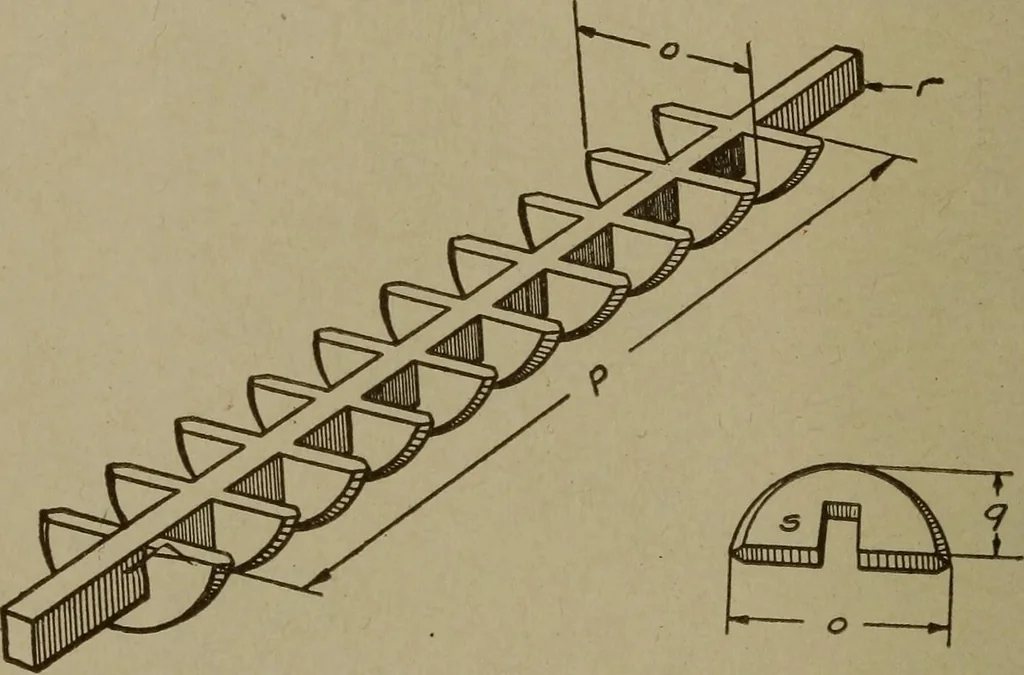

inch less than the outside diameter … Fig. 371. Cast-iron Arbor of the core, and the thickness about | inclf. The outside circularedges should be chamfered to a thin edge, so as to prevent softramming under the flanges. The width q should be | inch lessthan the half circle, as it is required to have the sand rammed overthe top of the…
