Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 159

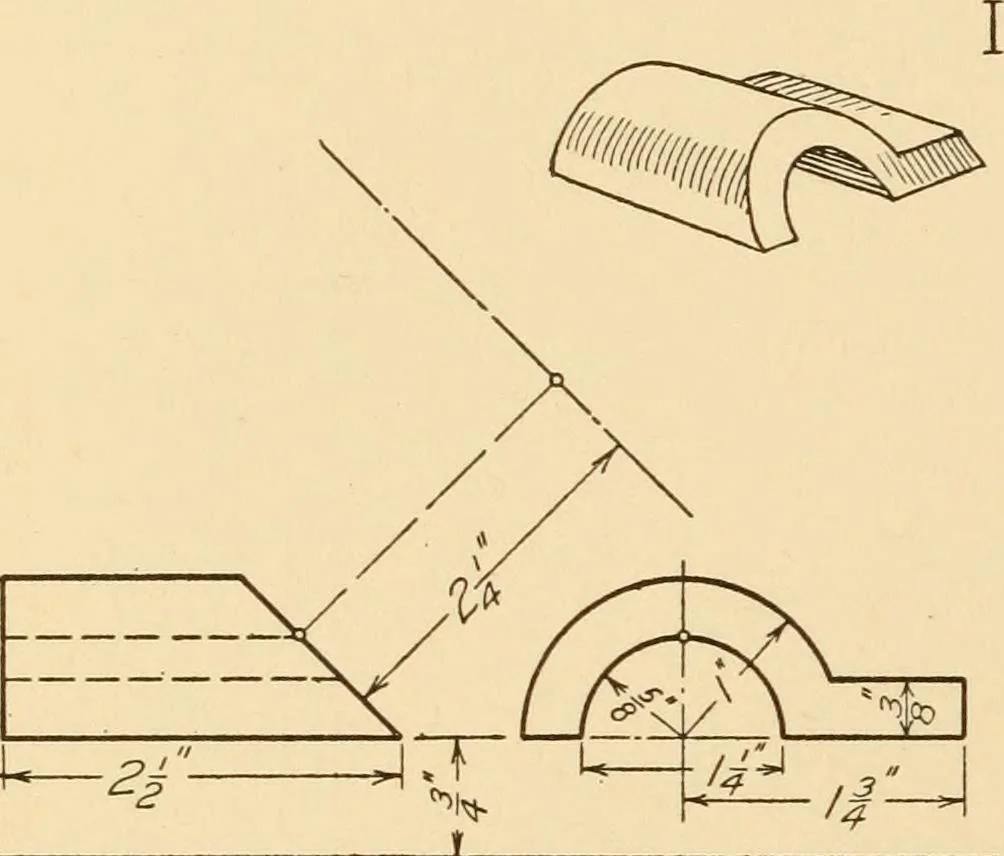

18, Fig. 244, Space III.—Draw views given and auxiliary view. PROB. 19, Fig. 244, Space IV.—Draw views given and auxiliary view. PROB. 20, Fig. 245.—Draw the two views shown and an auxiliary view of theFOOT PEDAL. Front view is to be complete. Top and auxiliary views will be partialviews. Do not…
Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
