Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 24

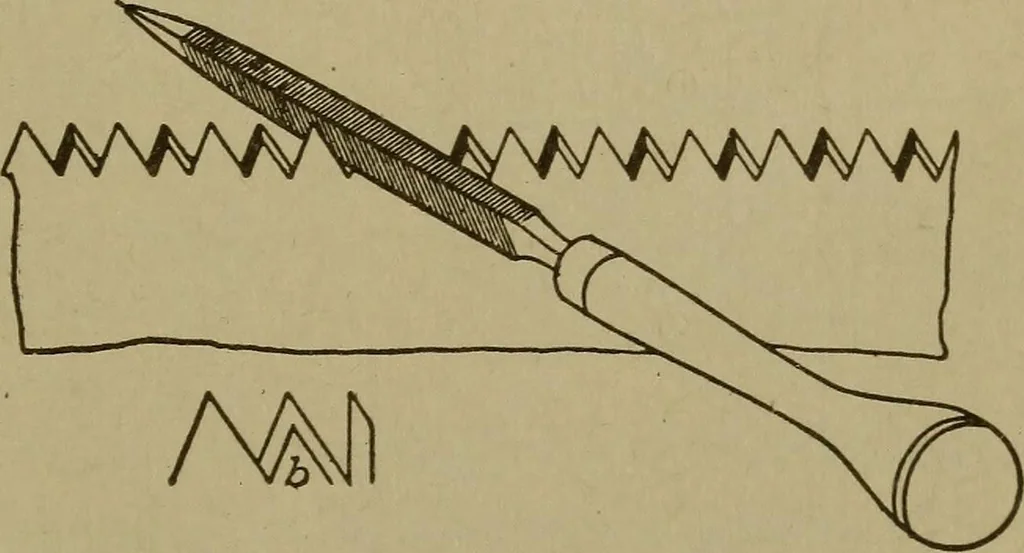

ld be heldhorizontally and at anangle of about 45 de-grees to the side of thesaw, lengthwise of theblade, as illustrated inFig. 15, and each alter-nate tooth must be filed from the opposite side of the blade,beginning at the heel and filing toward the point of the saw. The objection is often raised… … Fig. 15. Filing Crosscut Teeth 10 PATTERN MAKING first thrust of the saw through the board, however, will remove thisfeatheredge entirely; whereas, if the filing is done from the point ofthe saw toward the handle, it is necessary to file the teeth benttoward the operator, which causes the saw to…
