Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 31

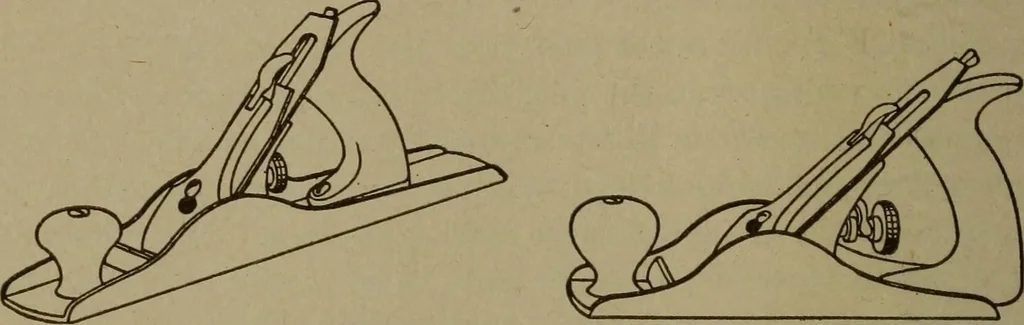

almost exclusively for planing and patternmaking. 16 PATTERN MAKING Jointer Plane. In making or in truing up very large surfaces,or in making long glue joints, the No. 7 jointer plane, 22 inches longand having a cutter 2f inches wide, will be found necessary. Thisplane is shown in Fig. 21, and… … Fig. 24. Jack Plane Fig. 25. Smooth Plane plane is made in several sizes. The No. 4, which is 9 inches longand has a 2-inch cutter, is the best size for general use, particularlyfor smooth surfaces. Block Plane. Next in importance to the three planes alreadymentioned, is the block plane,…
