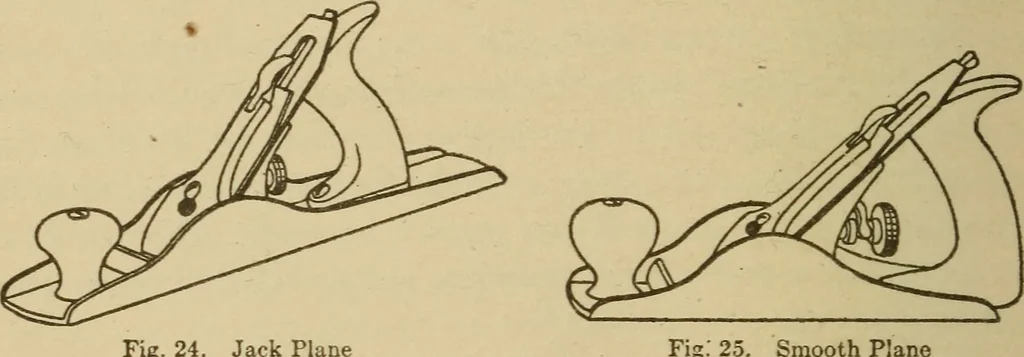

almost exclusively for planing and patternmaking. 16 .PATTERN MAKING Jointer Plane, In making or in truing up very large surfaces,or in making long glue joints, the No. 7 jointer plane, 22 inches longand having a cutter 2| inches wide, will be found necessary. Thisplane is shown in Fig. 21, and… … Fig. 24. Jack Plane 25. Smooth Plane plane is made in several sizes. The No. 4, which is 9 inches longand has a 2-inch cutter, is the best size for general use, particularlyfor smooth surfaces. Block Plane. Next in importance to the three planes alreadymentioned, is the block plane, illustrated in…
