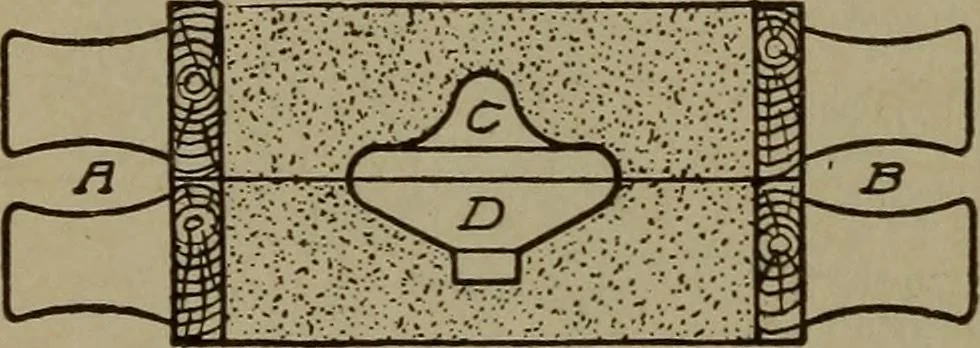

is turned upside down, and the portion Cof the pattern is lifted out. The portion D is lifted out of the dragin the same way. Cores for Hollow Castings. In the case of molding a hollowobject, the internal cavity in the casting is formed by means of adry-sand core which rests in impressions made in… … Fig. 104. Flask Showing Parting
