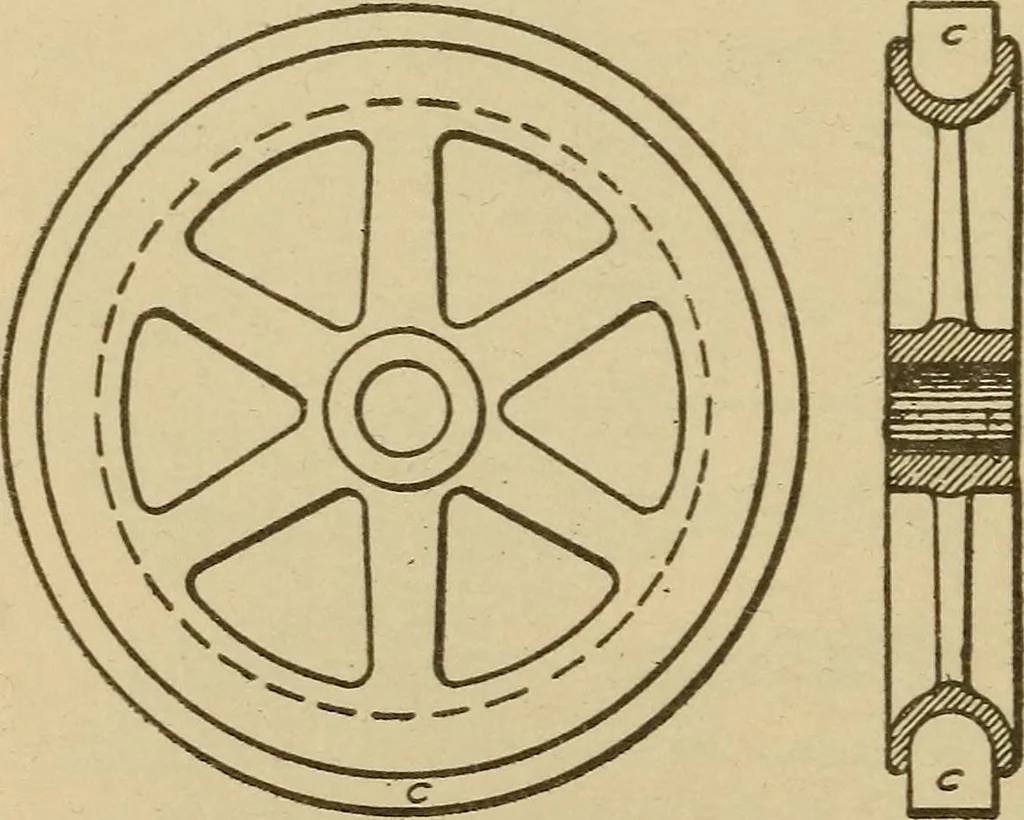

turn-ing off the projection on thecenter of the wooden chuckand making a recess insteadto receive the projection onhy proceed with this secondhalf as with the first. The 1-inch holes in thew^eb are bored out with a1-mch center bit, which,when well sharpened, doesnot split or splinter the thinwebs… … Fig. 167. Sheave Pulley Pattern with GrooveMade with Dry-Sand Core PATTERN MAKING 89 If the wood has been well seasoned, and the work carefullydone, a perfect 6-inch sheave-pulley pattern will be obtained. Thepattern for a sheave pulley has been explained because it embracesso many profitable…
