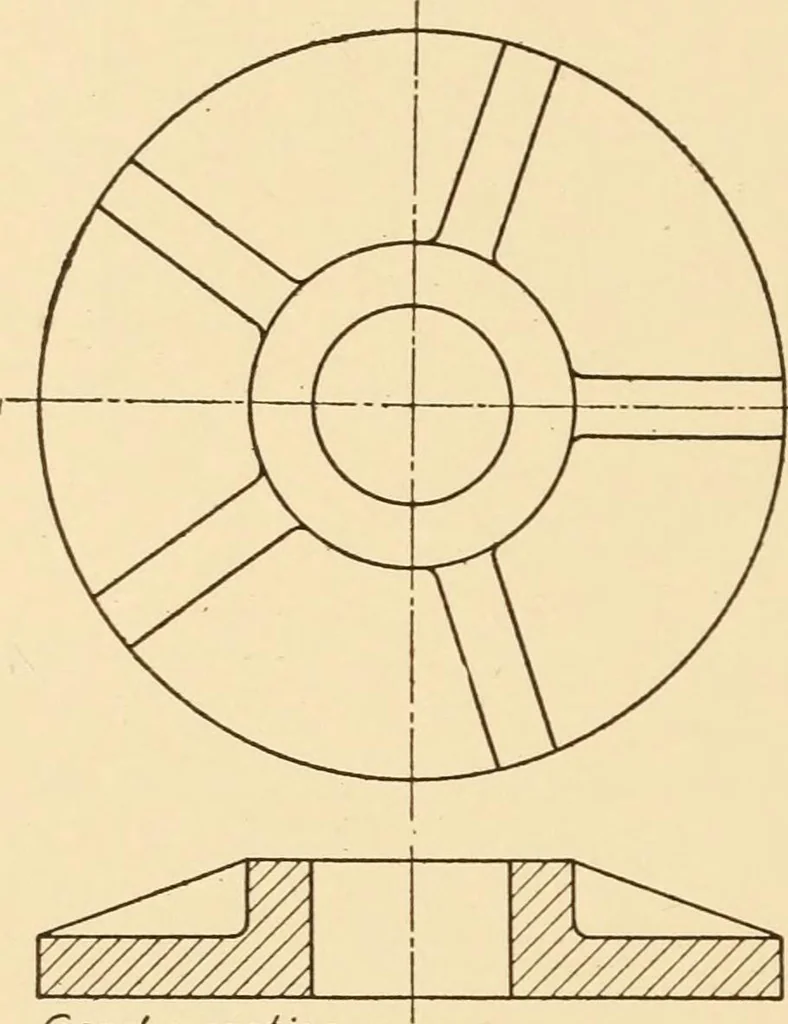

Fig. 98. Developed Section. A developed section is shown in Fig. 98, where the true lengthof each part of the cutting plane shows in the sectional view. 54 MACHINE DRAWING 89. Contour and Continuity.—The contour or characteristic ap-pearance of an object is often an aid in the quick interpretation… … Good procf/ce i ! I. \ \ H Good prochct
