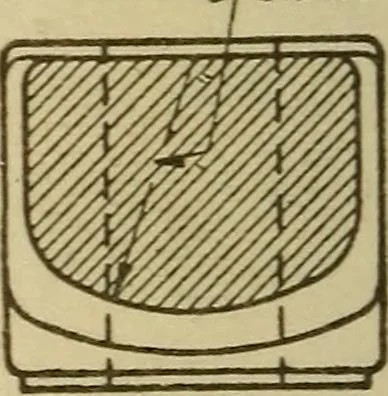

R^ Section BB Fig. 192. Detail Drawings fur Heavy Engine Crank a, Fig. 193, and leave stock at h so as to keep the top of the stockparallel to the band-saw table when sawing the line c. This stock h may be removed with achisel after all band-sawwork is completed. Havethe band-saw table tiltedwhen…
