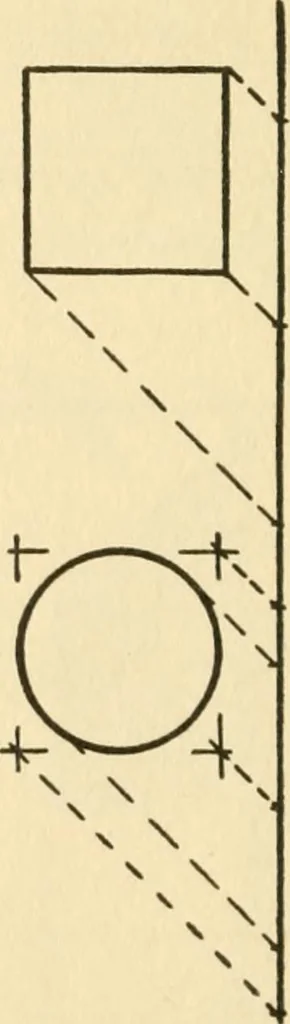

Fig. 40. Shadows of a Square and Circle Perpendicular to Plane ofShadow. will be equal in size and shape to the figure (seeFig. 39). A square perpendicular to the plane ofshadow will cast a diamond-shaped shadow, fortwo of the lines are parallel to the plane, andtwo are perpendicular to the plane…
