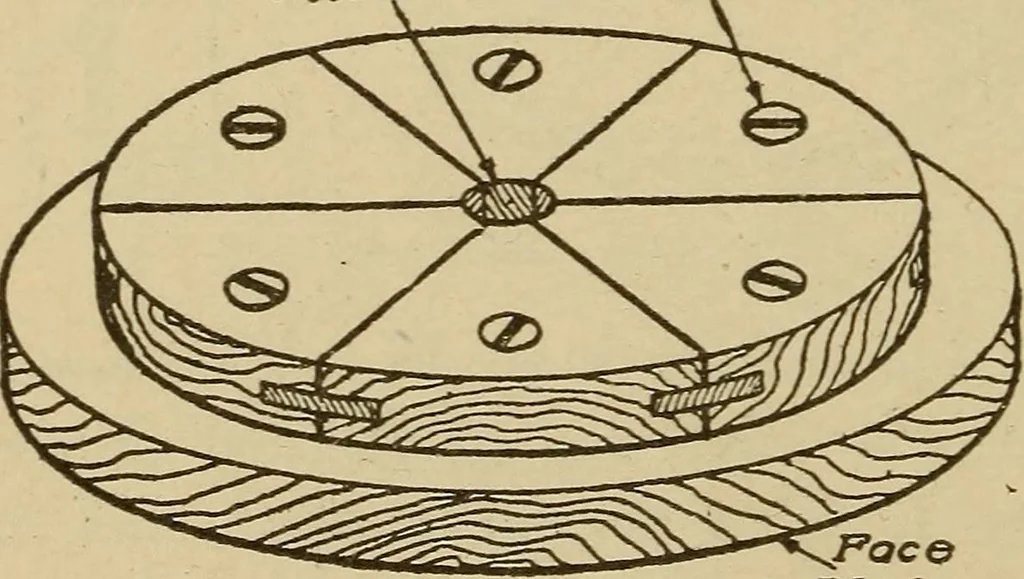

Fig. 195. Section of Pattern for Disk Crank I Holo Wood Screws … Plate Web Stock for Disk Crank and Faceplate layer true and concentricw4th the center of the pat-tern. Fit the segments care-fully and use three handscrews to hold each seg-ment while the glue is dry-ing; A w^ait of about twohours should be allowed Fig. 196. Web Stock for Disk Crank and Faceplate…
