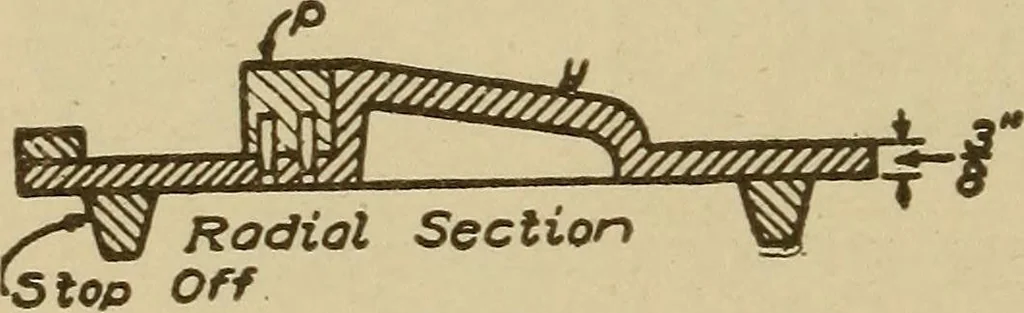

Fig. 273. Draw Pieces for Core Box 160 PATTERN MAKING … the stock reversed, and should be cut to the form shown in Figs.275 and 279. The small blocks or lugs are so placed that they cen-ter the bottom with the sides. This bottom can be centered withthe sides by dowel pins in holes drilled through the flange. How-ever, as the bottom and top should extend…
