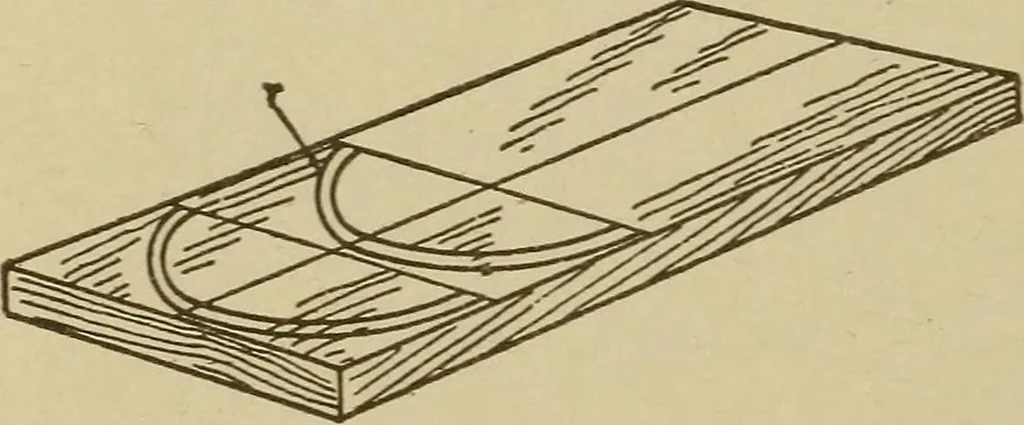

. Wood screws Fig. 290. Cap Pattern Stock Mounted on Wood Arbor Ready to Turn Outside •a babbitted bearing. Band saw to the line i, leaving stock at jjso that when band sawing to the lines h h the top surface or workingface of the stock will be kept parallel to the table. The stock atj may be cut… … 168 PATTERN MAKING Prepare an arbor and fasten the pattern to it, as illustratedin Fig. 290, with six wooden screws. The pattern may now be putinto the lathe, and all parts that are concentric with the arbormm, nn, and /, may be turned. The lathe should be run at itsslowest speed and the turning…
