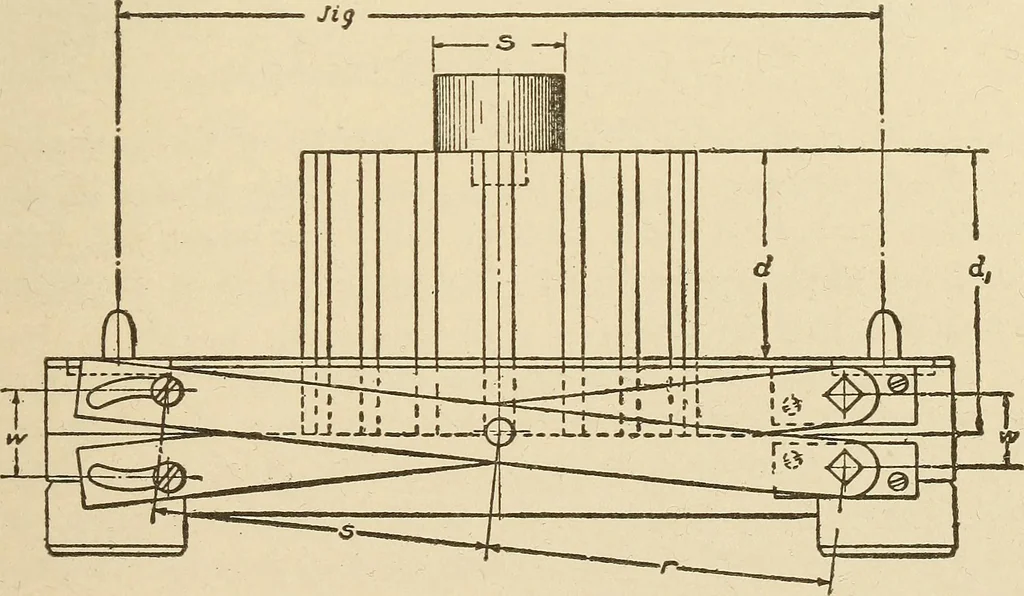

Fig. 302. Draw Plate for Spur-Gear Casting … Fig. 303. Elevation of Spur Gear and Draw Plate smooth work, and a single cutter, called a fly cutter, is fitted to thespindle in place of the milling cutter. 178 PATTERN MAKING Stripping Plate and Draw Board, The stock for the strippingplate and draw board may be prepared while waiting for the…
