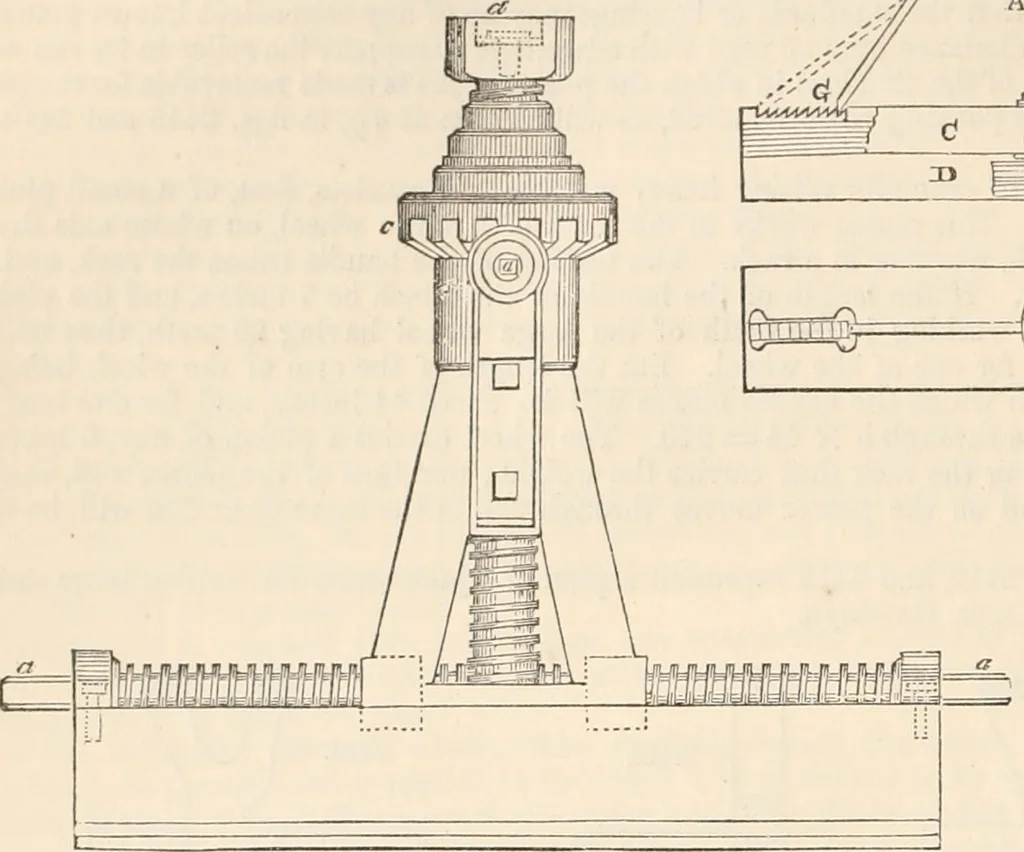

132 JACK, TRAVERSING SCREW. JACK, TRAVERSING SCREW. Figs. 2415and 2416 exhibit a side view and plan of thescrew modification. The screw-jack A is boltedto the plank C; at the other end of the plank isfixed the rack G, in which the toe of the strut Fadvances as the screw B is elevated; the…
