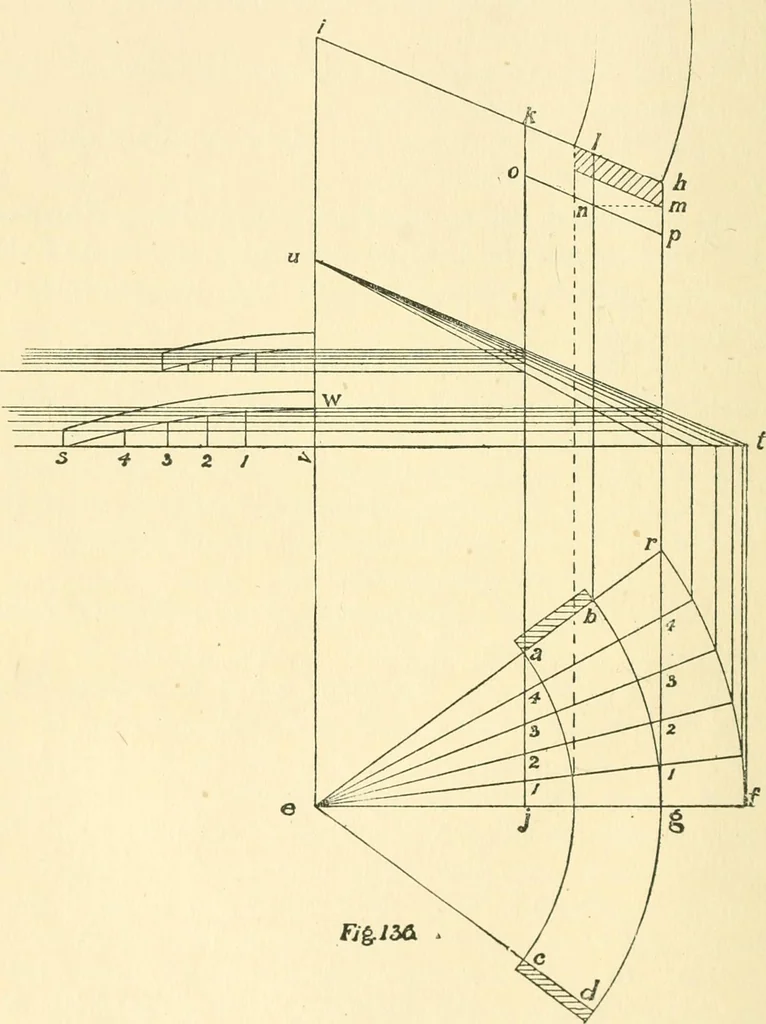

m pointse, a and b to strike the line i h, as / k and b I; now spacedown from k on k g the thickness of the desired sill anddraw the horizontal line m n to strike / b; draw the line0 p through n and parallel to /- h, and k h 0 p shows thesize of lumber that will be required to make the sill. The 98… … r; also continue the centre line c g and draw the arc r f;now divide the arc r f into any number of equal spacesand from these points draw lines to the centre e; now FOR CARPENTERS AND MECHANICS. 99 from these same points draw perpendicular lines to meeta horizontal line, as .9 /, and from t draw a…
