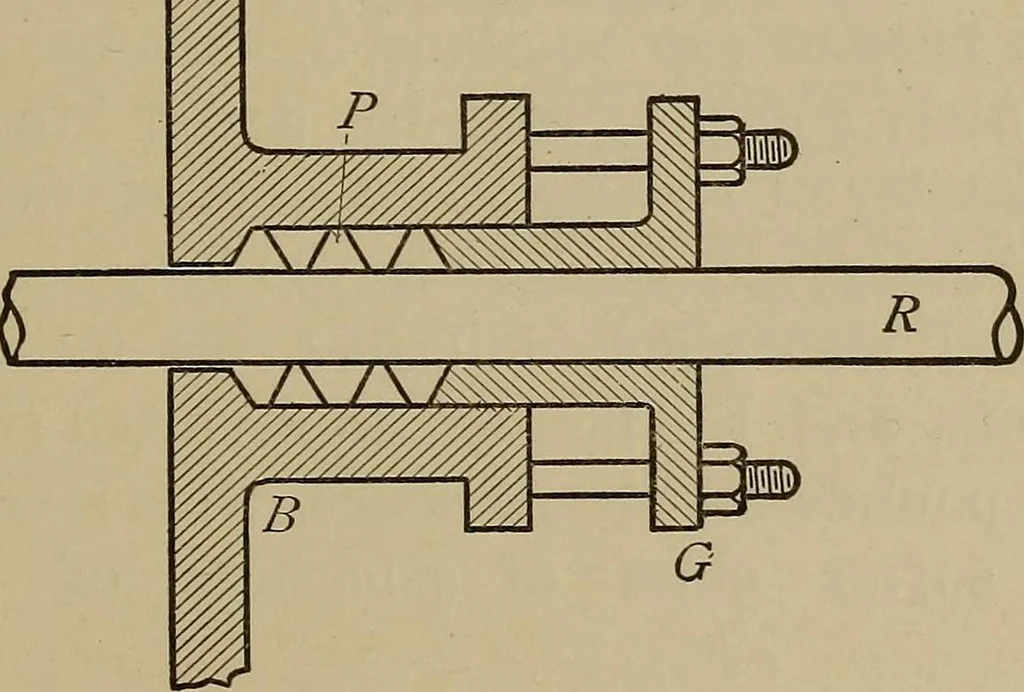

Fig. 35. 41. Stuffing Boxes. In steam engines and pumpsthe glands for holding the steam and water packingare the sliding bearings which cause the greatest fric- … Fig. 36. tion and the most trouble. Fig. 36 shows the general 92 MACHINE DESIGN. arrangement. B is the stuffing box attached to thecylinder head ; R is the piston rod ; G the gland ad-justed by nuts on the studs shown ; P the packingcontained in a recess in the box and consisting of rings,either of…
