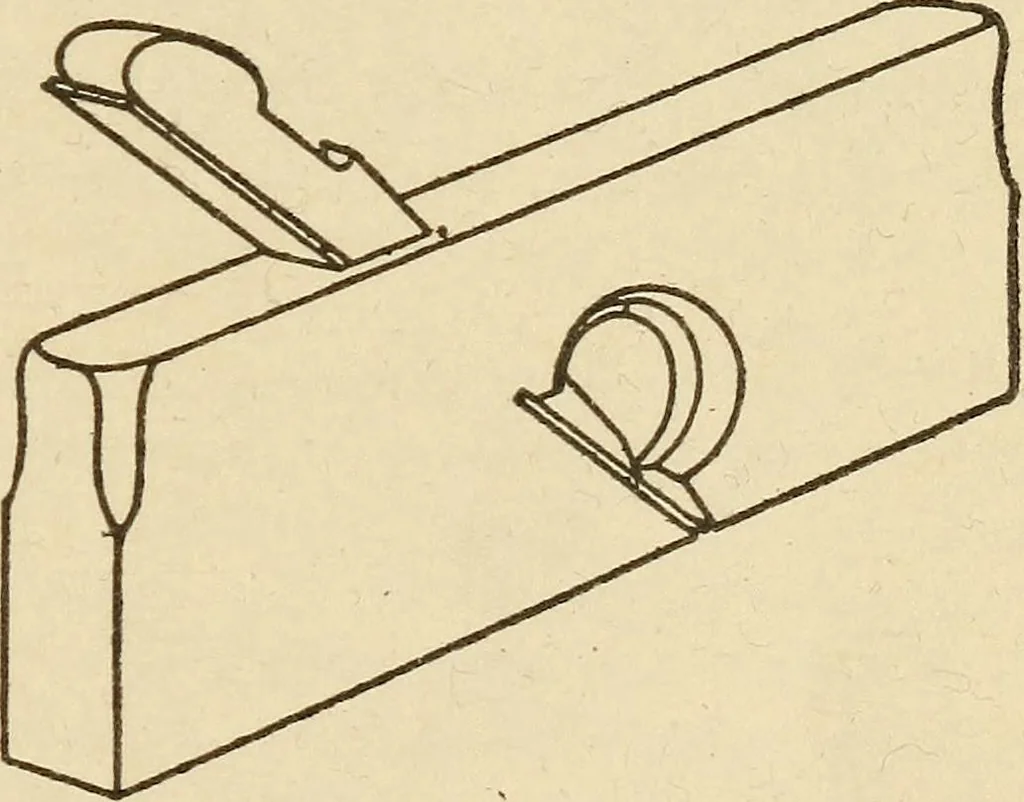

ngles andcorners, or laps as they are called in carpentry, and also for workingthe lap joints, as shown in Fig. 30. The skew-iron rabbet plane,in which the cutting edge of theplane iron is set diagonally acrossthe face of the plane, works much more smoothly and easily thanone in which the iron is… … Fig. 29. Rabbet Plane Fig. 30. Rabbeted Lap Joint 18 PATTERN MAKING Rabbet planes are made in sizes ranging from ^ inch to 1§inches in width. The 1-inch and IJ-inch are convenient sizes forgeneral work. Round and Hollow Planes, These planes are illustrated inFigs. 32 and 33. They are made of…
