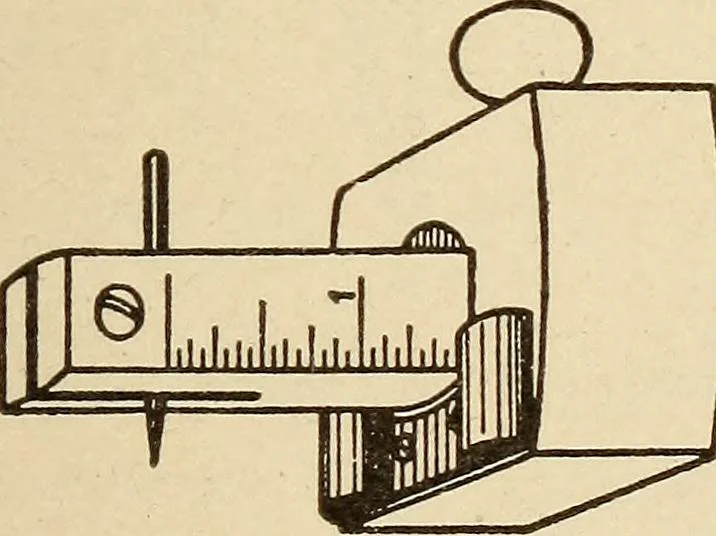

Fig. 61. Shrinkage Rule brass 24f inches long, and for other soft metals 24^ inches in length.They can also be bought made of tempered steel 12| inches, 12j^inches, and 12| inches in length. In making use of the shrinkagerule, the workman will proceed just as though he were using astandard rule;… … .-Ifllfc :iffT!fix-. Iiijlilliiiliiiliiiliiiliiilililiiilililiiiliiil Fig. 62. Improved Marking Gage Marking Tools. Marking Gage. The marking gage is used fordrawing a line at a given distance from, and parallel to, the alreadytrued and jointed surface or edge of a board or piece of wood that…
