Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 40

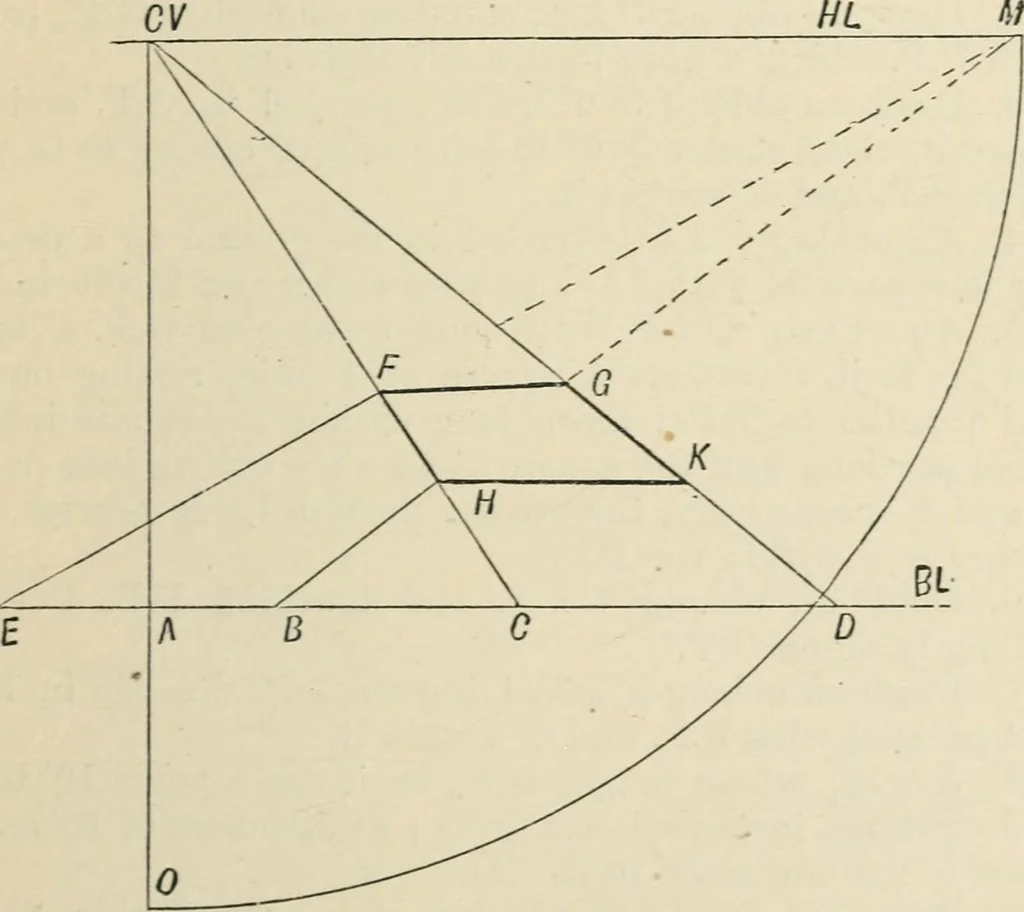

4 to right, J_ to P.P. and 3within it, J_ to G.P. and just its own height beloiv it. 10. Draw a cube (edge 4) touching P.P. 4 to left, restingon G.P. 11. Draw a cube (4 edge) directly in front, and to rest onG.P, one edge parallel to P.P. and 2 within it. THE OBLONG. 37 The Oblong. An oblong is a… … Fig. 20. Example 1.—Draw an oblong 3 x 2, lying on G.P., __j_ toP.P., side 3, parallel to, and 2 within it; oblong to be 4 toSpecifications as before. right 38 DRAWING. Construct figure as before. Find M, and measure off AC 4= (distance to right), CD = 3 (length of side), and measure offBE 2…
Geometrical drawing · Perspective
