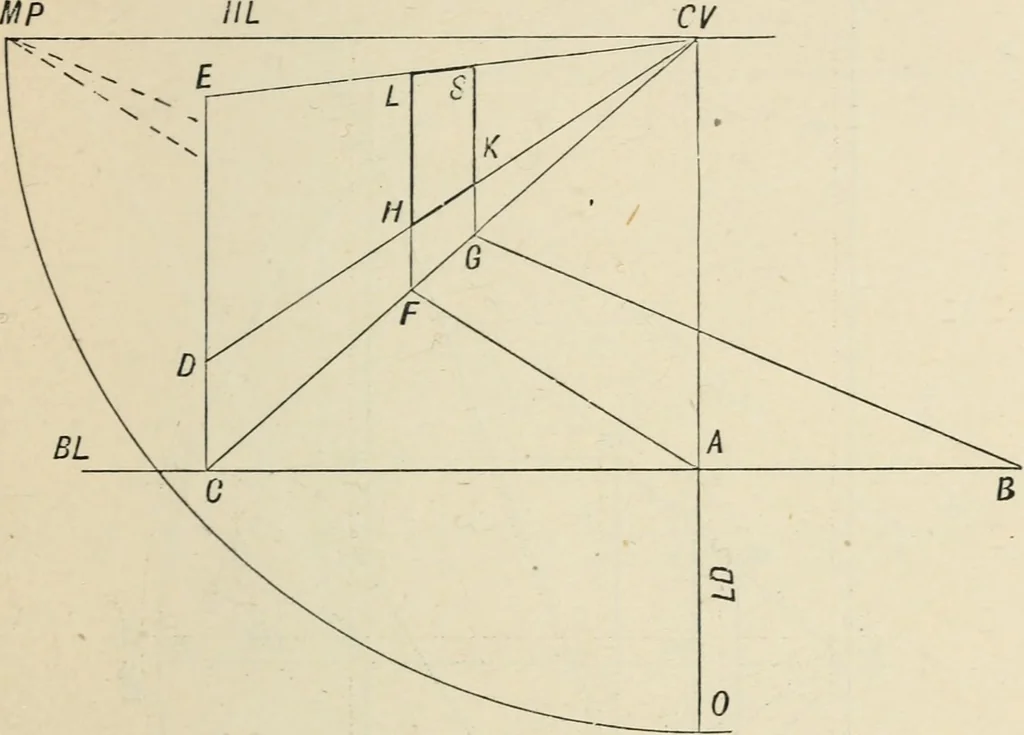

it, and J_ to G.P. and 1 abov5 it.Other specifications as in last example. Construct figure as before. Take C U (6) to left of A,take B 1 (4) to right of A, erect CE _\_ to AC at C and IJ(5) in height, and mark ofi D J (1) above C; join E C.V.D C.V., C C.V., A MP and B MP. Through F, G draw FLand… … Fig. 17. Example 3.—Draw a square 4 side directly in front, paral-lel to G.P. and 3 above it, and _j_ to P.P. and 3 within it.Same specifications as before. Construct figure and find M as before. From A measureoff Y both ways to B and C (BC = 4); erect perpendicularsBF and CG, each | (3); join FG,…
