Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 73

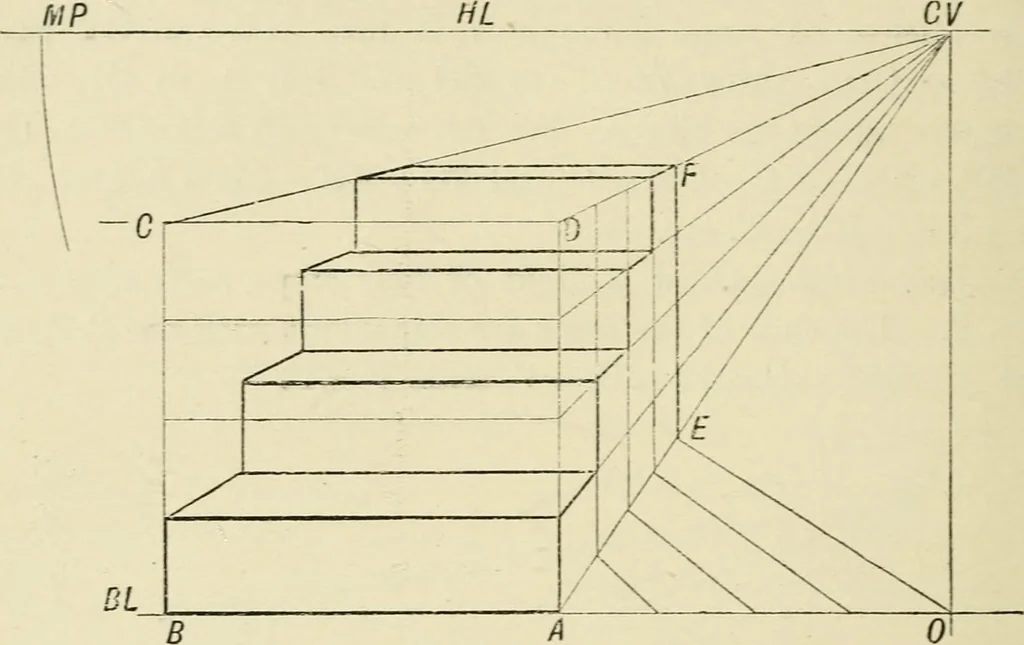

Fig. 40. Here take A, 4 to right of E. and B 4 to right of A ; onAB describe square ABDC, and divide it into sixteen equalsquares ; join each angle, as shown in figure, with the C. V.;join also E MP, cutting A C. V. in F; draw FG parallel toAC, GS J_ to GF, etc. Then FG = AK - 1, and GS = KN= 1,… … Fig. 41. Draw H.L., B.L., and find C.V. and MP as before. TakeA, 4 to left, and B, 4 to left of A ; on AB construct squareABCD ; join O MP; and on AE, complete square ADFE ;then draw steps similar to preceding example. Exercise IX. (H = 6, L.D.=4, scale J*=l.) 1. Draw a cube, edge 4, 2 within P.P.…
