Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 74

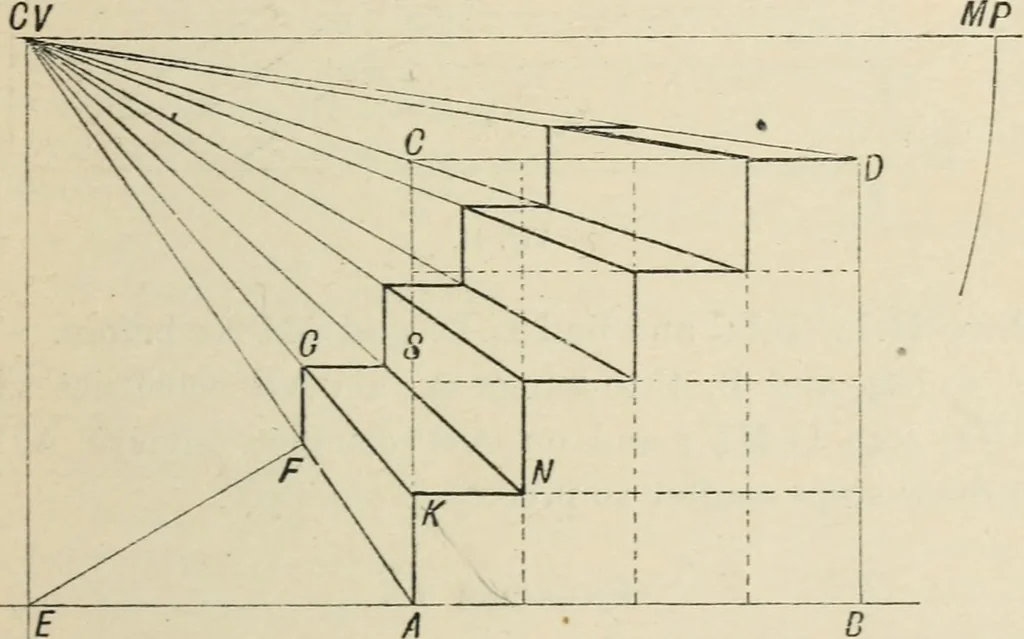

V.,A C.V., B C. V.; also 0 MP and M MP. From points K, H,where B C.V. intersects 0 MP and M MP, erect KX and HGparallel to BD ; and through N, G draw NE and GF paral-lel to CD. Draw EL _L to EN and KL _L to EL, whichwill complete the plinth. For BK = BO and KH = OM ; thenEF = NG = KH = OM = 4, and… … Fig. 40. Here take A, 4 to right of E, and B 4 to right of A : onAB describe square ABDC, and divide it into sixteen equalsquares; join each angle, as shown in figure, with the C.V.;join also E MP, cutting A C.V. in F; draw FG parallel toAC, GS \__ to GF, etc. Then FG = AK-r, and GS = KN= 1, etc.;…
Geometrical drawing · Perspective
