Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 78

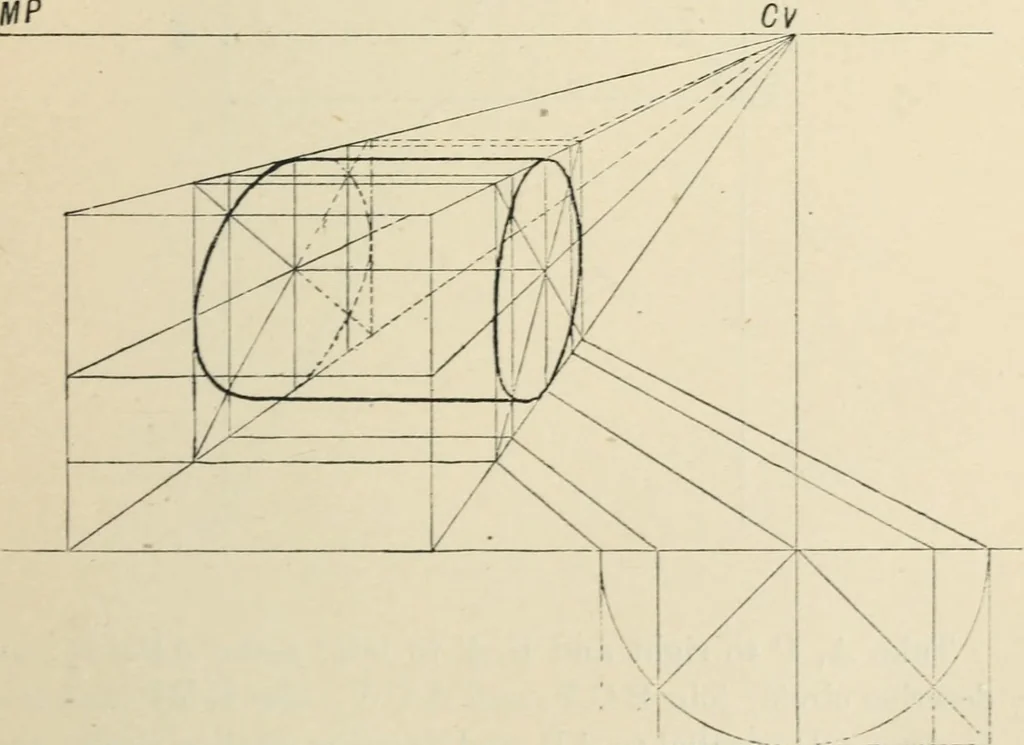

xplained;then draw the hexagons, one on G.P., the other 4 above it;then join similar angles in each, forming the required hexagon.(Fig. 43.) THE CYLINDER. 75 The Cylinder. The drawing of the cylinder differs from that of the prism,only in the plan. Draw the circles, forming the ends, in theproper… … Fig. 44. 76 DRAWING. Example 2.—Draw a cylinder lying on G.P., 4 to right,having end perpendicular to P.P., and touching it; cylinder8 long and 3 in diameter.
Geometrical drawing · Perspective
