Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 471

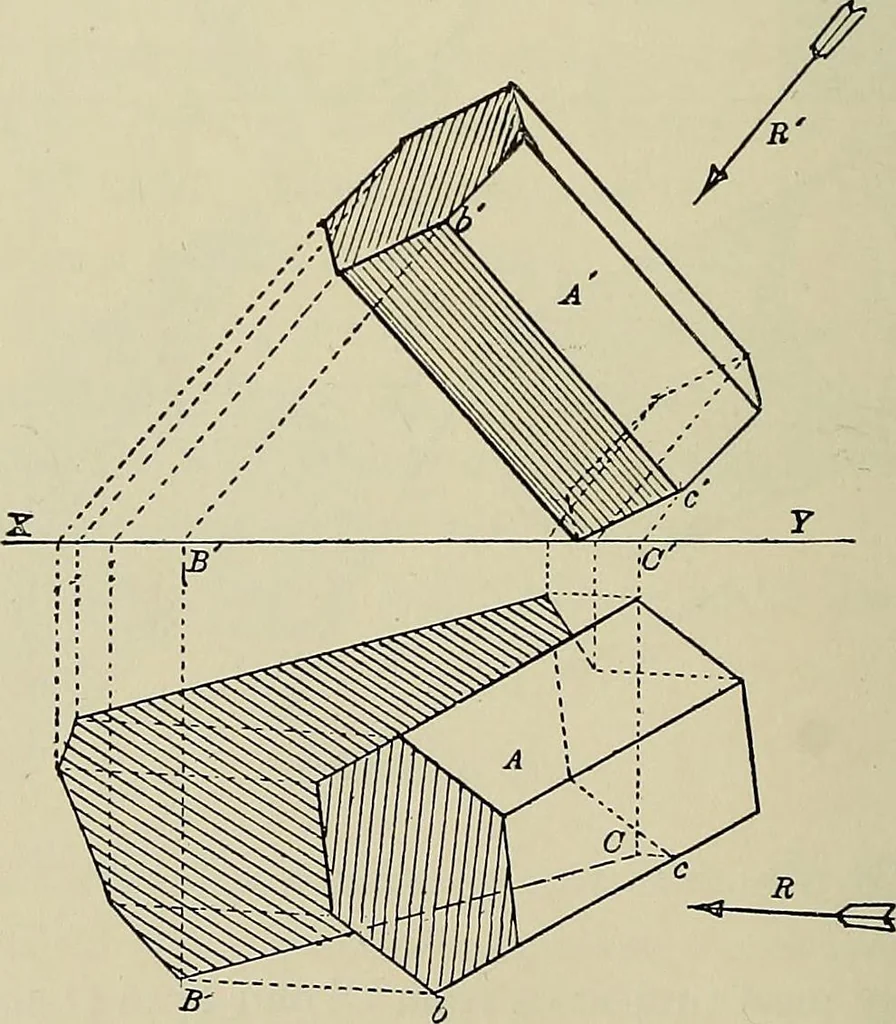

adow, as qi- and st. Draw the projector 2g 450 SOLID GEOMETRY 25, and draw ((u parallel to the line mh. Then 5% is the lineof separation in the elevation. From s draw sv parallel to theside of the cylinder. This is the plan of the other line ofseparation. Problem 204. To determine the shadow of a… … Fig. 254. Draw lines from h and c parallel to E till they meet XY inB and C Draw lines from h and c parallel to E till they meetprojectors from B and C in B and C. Find the shadows of theother edges in the same way, and join them as shown. PROJECTION OF SHADOWS 451 Pkoblem 205. To determine the…
Geometrical drawing
