Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. [from old catalog] · Toronto, W. Briggs; · leaf 111

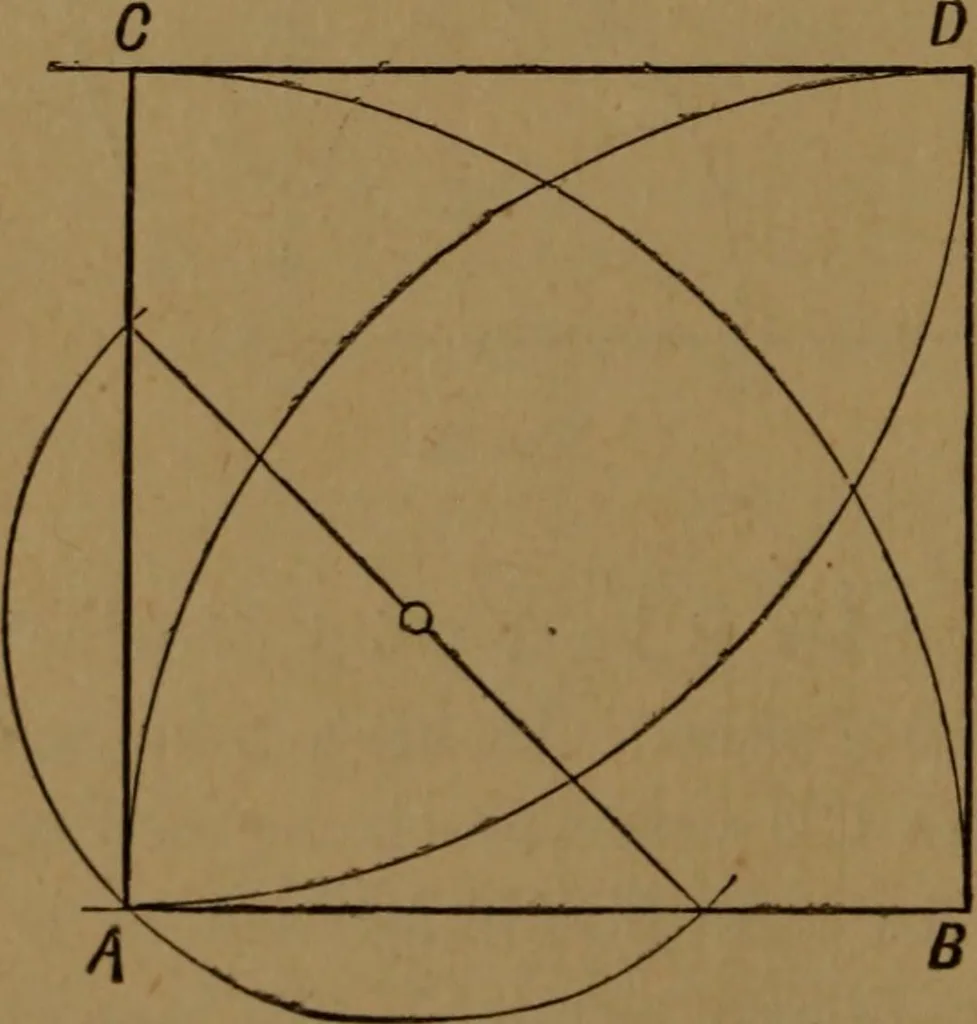

8 106 DRAWING. join DB, which will be perpendicular to AB, at B. (Figs. 63and 64.) (6) From a point above or below AB, ^ Fig. 65. Let AB be the given line and C given point above; withcentre C describe an arc to cut AB in D and E; with centreD and distance greater than half of DE describe an arc;… … Fig. 66.
Geometrical drawing · Perspective
