Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. [from old catalog] · Toronto, W. Briggs; · leaf 115

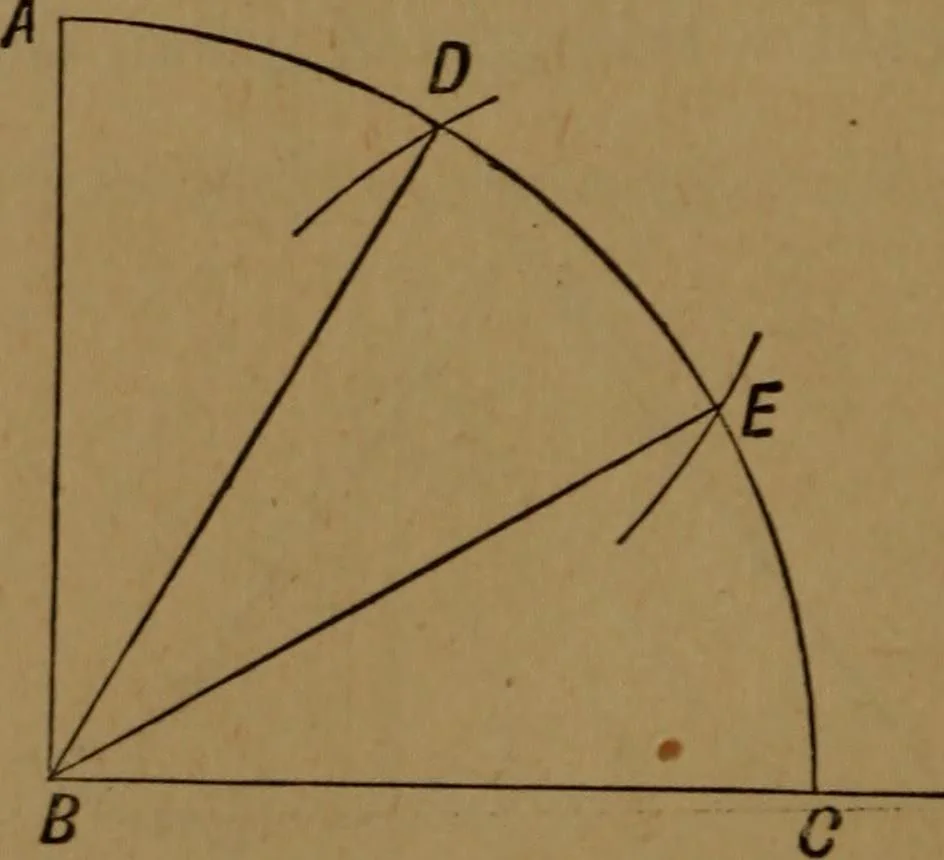

Fig. 74. Let BAG be a given angle; with centre A and any distanceAB describe an arc BC; with centre B and any distance lessthan half of BC describe an arc; with centre C, and same dis-tance, describe an arc to cut former arc in D; join AD, whichwill bisect the angle. (Fig. 74.) No, 7.—To trisect a… … Fig. 75. Let ABC be the given right angle; with B as centre andat any distance BA describe the quadrant AC; with centre Aand distance equal to AB describe an arc to cut AC in E; andwith centre C, and distance equal to CB or BA describe an GEOMETRICAL DRAWING. Ill arc to cut arc in D. Then D, E will…
