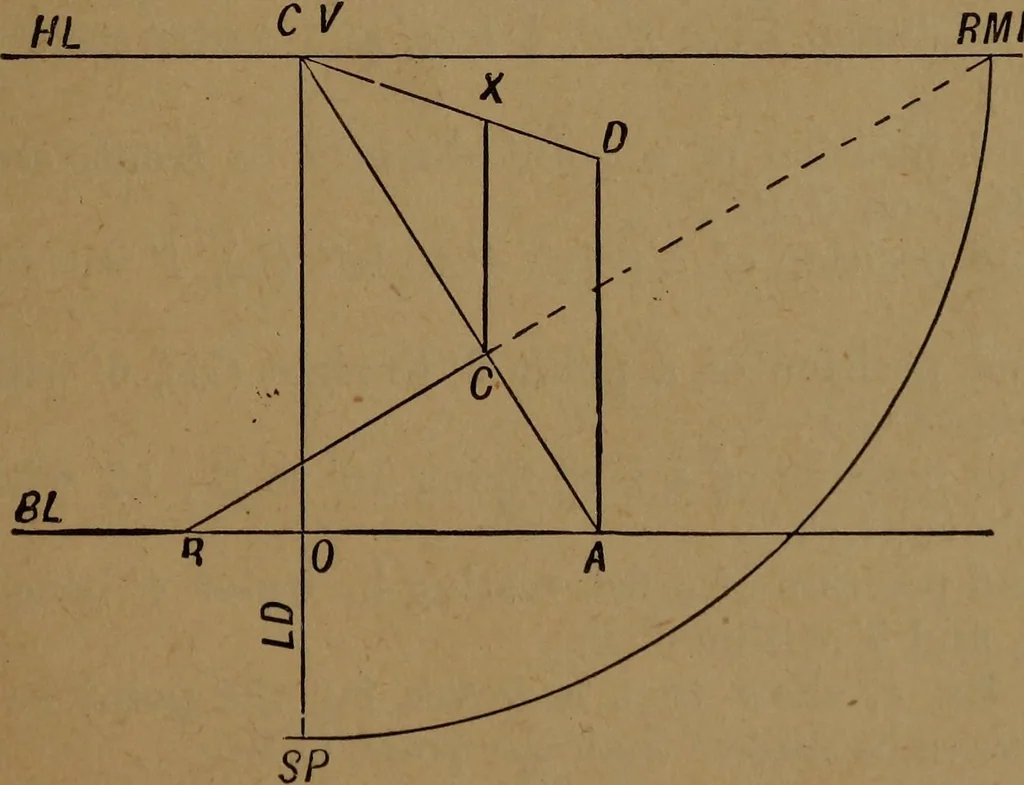

Example 2.—Find a point 3 feet (3^) to right, 4 feet (4)within the P.P., and 5 feet (5^) above it. Height of spectator5 feet 6 inches (5 6), and his distance from P.P. 4 feet (4). BMP … Fig. 9. Draw H.L. and B.L. 5 6 apart; draw C.Y. S.P. cuttingB.L. in O ; make O S.P. = 4. Find EMP (C.Y. EMP mustalways be equal to C.Y. S.P.); make 0A = 3, from A measure 22 DRAWING. off AB equal to the required distance of point within theplane (4). Join A C. Y. and B BMP, intersecting in C ;…
