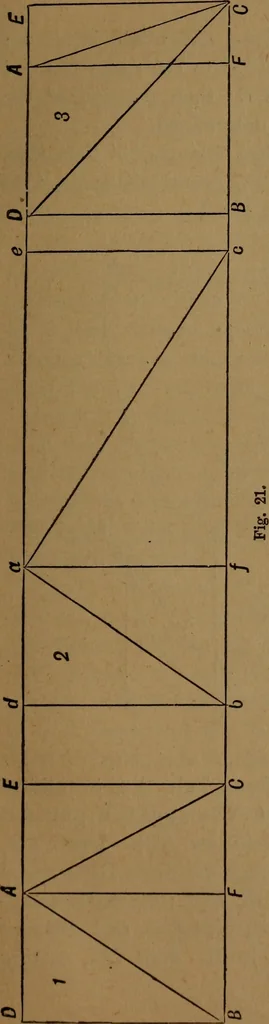

tly in front;end parallel with P.P. and 2 within it. 8. A wall, whose height is 8, begins at a point 10 to left,and stretches inwards indefinitely ; at distances of 10 and 20doors 5 X 3 are made in it. Draw it. 9. Draw an oblong 6 x 4, lying on ground, sides parallelto P.P. and 2 from it, oblong 3… … Ttie Triangle. A triangle is a figure enclosedby three straight lines; thesemay be of uniform length, butthe length of any two takentogether must be greater thanthe third. The triangle cannot be con-veniently drawn alone, but isdrawn with reference to an ob-long. Triangles are equilateral,…
