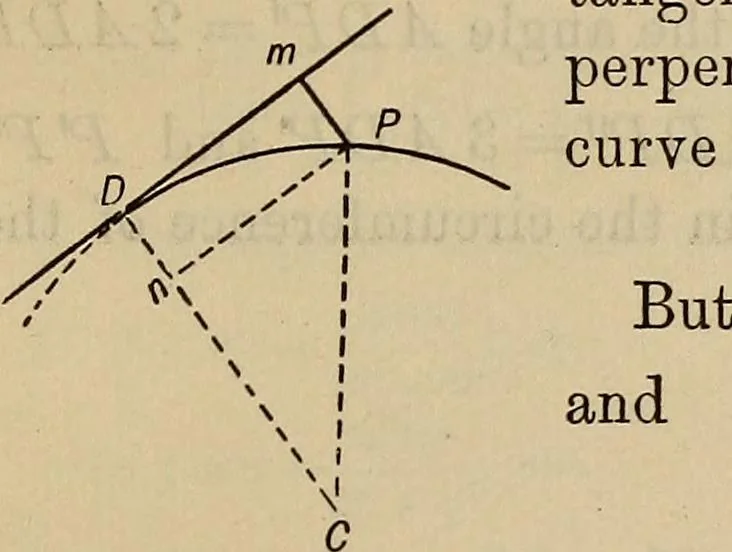

RAILROAD CURVES. 71 of curvature will depend on the angle A and the tangent AD.For, in the right triangle ADC, tan 2X4 C=Hence, r- ——-, or tan + ^1 = —AD 2 t t tan-J J.. First Method, … To Lay out the Curve. Let Dm (Fig. 53) represent a portion of thetangent. It is required to find mP, theperpendicular to the tangent meeting thecurve at P. mP=Dn = CD-Cn. CD = r, _Cn = ^CPi= Vr^~ Jff ■f. Fig. 53. Hence, mP^r-Vr2-*2.
