Plastering, plain and decorative. A practical treatise on the art & craft of plastering and modelling, including full descriptions of the various tools, materials, processes, and appliances employed ... together with an account of historical plastering in England, Scotland, and Ireland, accompanied by numerous examples (1899)
Millar, William, d. 1904, Robinson, G. T · London : Batsford · leaf 250

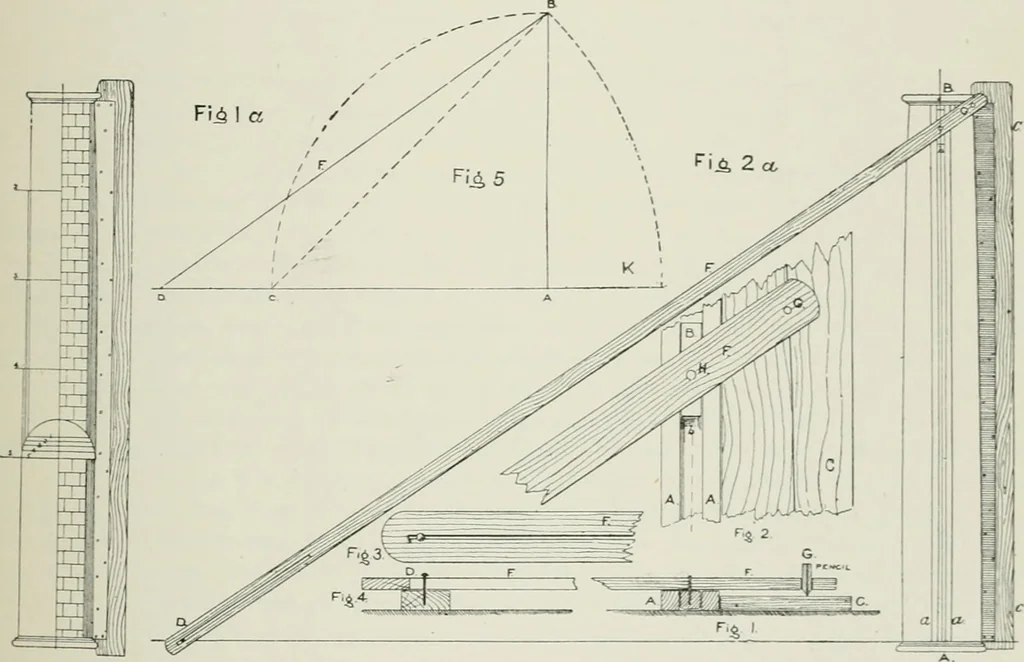

uire the curve to be drawn by hand, a defect, however, obviatedby using a column trammel, which is used for a column that diminishes with a graceful curve fromthe base to top of the shaft. This trammel is made as follows:— COLUMN Tr.\MMEL.—A column trammel is simple in construction, and when… … No. 29.—DiMixisHiNc; COLU.MNS—Column Trammkl .vnd Diminished Floatinc Kcle. column trammel, the method of finding the point D on Fig. 2a is given on a separate sketch(Fg- 5) to show the method more clearl)-. Fig. 5 illustrates the method of obtaining the point D, on which the centre pin is fixed…
Plastering · Decoration and ornament, Architectural
