The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1897)
Auchincloss, William Stuart, 1842-1928 · New York : Van Nostrand · leaf 140

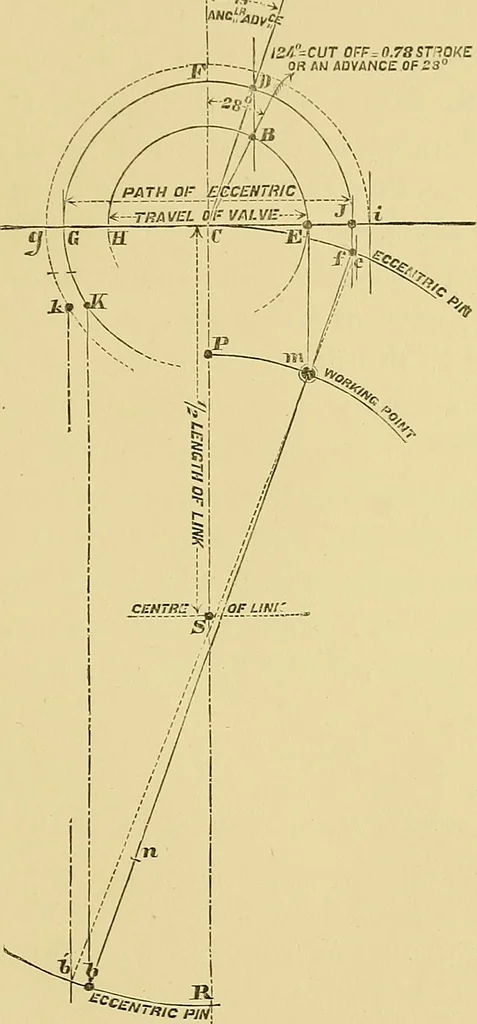

vertical line FR a semi-circle E H with a diameter equal to the proposedtravel of the valve; from C lay off C P, the extreme dis-tance of the working point from the eccentric pin, also C Sthe |- length of the link. With S as a centre describe thearcs C /, P m, and b R. Suppose now the cut-off… … through the point of intersection B parallel to F R. Strikea trial eccentric circle JFK about the centre C. Take thedistance between its two intersections D and F in a pair ofdividers and lay it off twice from G, giving the point K. 110 APPLICATION OF LUX ISTO. II. Through K draw a line parallel to…
Steam-engines
