Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 150

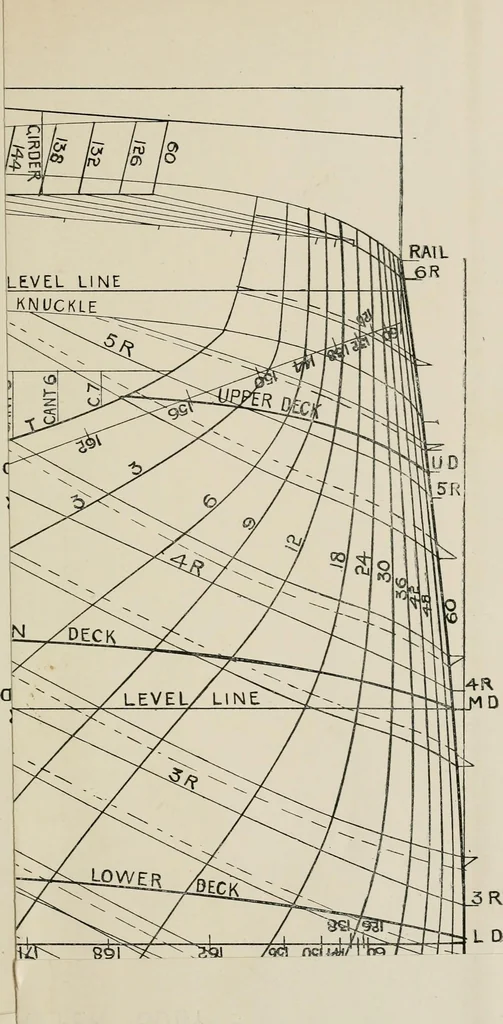

diagonals. Transferon a short batten from the Sheer on the loft floor heights of the rail,knuckle and deck at side above the depth moulded line at every frame,and strike in level lines through the spots ; the after sheers over theafter body, and the forward sheers over the forward body. Then… … Fig. 48. AQOa 3MOJ
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
