The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1870)
Auchincloss, W. S. (William Stuart), 1842-1928 · New York : Van Nostrand · leaf 114

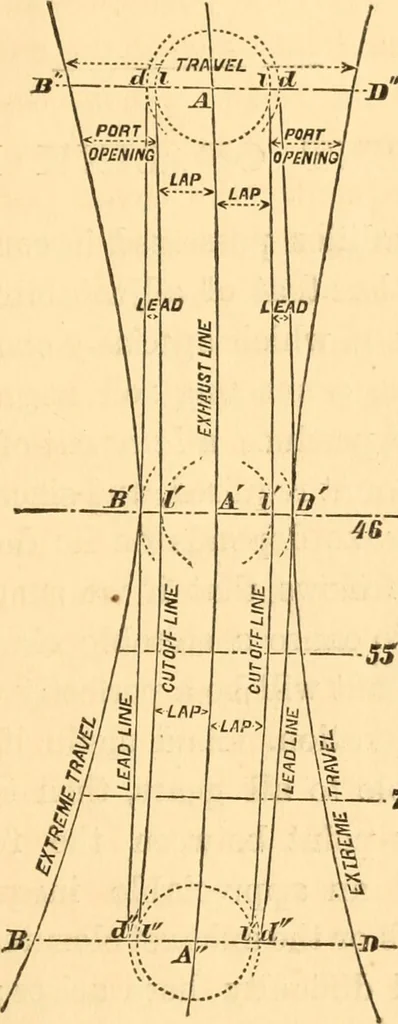

readily beobtained by raising the link to the full gear back positionand a similar set for the mid gear, but an examin-ation of the one just found will develop the characterof the motion. Draw curved lines* tangent to the * Hyperbolic curves with semi-transverse axes shorter than their… … — 75 n-/oo dius equal to C A sweep an indefinite arc A A A for theexhaust-closure line, and parallel arcs I I I for the cut-offlines. Draw lines d D? dn and d B dn tangent to all the linkarc positions No. 1 and No. 7; these show, by their distancesfrom the cut-off lines, the variable character of…
