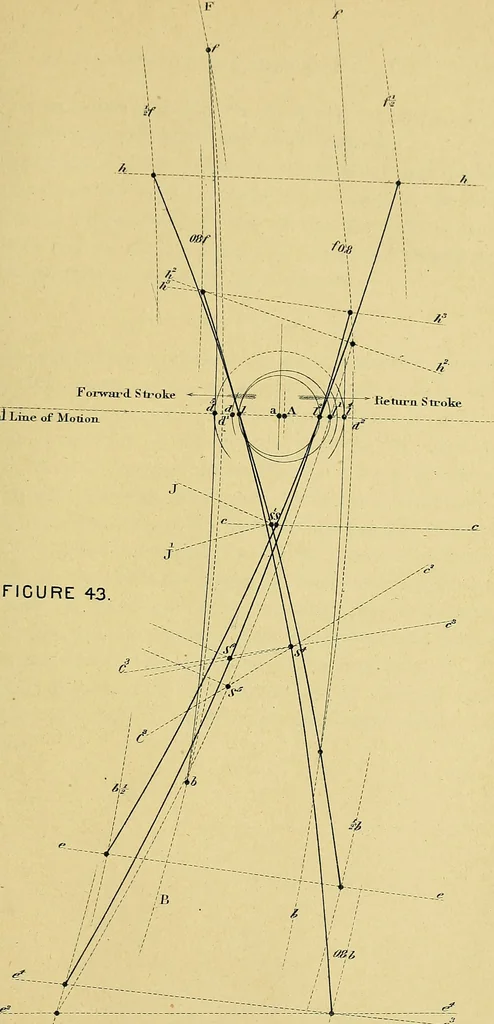

f for the returnstroke. The lines of suspension pin motion c, c, c\ c* mayconverge, as in the present instance, towards some pointbeyond the link. In such case the tumbling shaft shouldbe placed on the side of the convergence. If, however, the link is suspended by the upper eccen-tric rod pin, the… … FIGURE 4-3. 1>P8 APPLICATION OF LINK NO. II. 113 the lower eccentric rod pin, the lines will become e, e\ e\and its tumbling shaft will stand above this line. The judgment of the designer will in every case decideto what extent the lead openings should vary in the fullgears, what inequalities of…
